DFAC D9 20m Aerial Platform Truck EURO 5 , Ruck Mounted Hydraulic Platform

Good quality Chemical Tanker Truck for sales
Good quality Chemical Tanker Truck for sales
I'm Online Chat Now

DFAC D9 20m Aerial Platform Truck EURO 5 , Ruck Mounted Hydraulic Platform

China DFAC D9 20m Aerial Platform Truck EURO 5 , Ruck Mounted Hydraulic Platform supplier
DFAC D9 20m Aerial Platform Truck EURO 5 , Ruck Mounted Hydraulic Platform supplier DFAC D9 20m Aerial Platform Truck EURO 5 , Ruck Mounted Hydraulic Platform supplier DFAC D9 20m Aerial Platform Truck EURO 5 , Ruck Mounted Hydraulic Platform supplier DFAC D9 20m Aerial Platform Truck EURO 5 , Ruck Mounted Hydraulic Platform supplier

Large Image :  DFAC D9 20m Aerial Platform Truck EURO 5 , Ruck Mounted Hydraulic Platform

Product Details:

Place of Origin: Hubei ,China
Brand Name: Dong Run Ze
Certification: C3
Model Number: DFAC

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit Call /WhatsApp:+8615271357675
Price: Negotiated at Weichat:King253725877
Packaging Details: Some Body Part By containers , Truck by Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck, we will spray antirust paint with free. please emial to <sale@tictrucks.com>
Delivery Time: 25 working days
Payment Terms: TT emial to <253725877@qq.com>
Supply Ability: Ask us for Better Price <253725877@qq.com>
Contact Now
Detailed Product Description
HS-Code: 8705909990 Cell: 8615271357675
Key Parts: Aerial Work Platform Chassis: DFAC D9
Dimensions: 10100*2500*3800mm Wheelbase(mm): 4700 ,5100mm
Rated Loading: 200kg Platform Height: 20-22m
High Light:

truck mounted aerial platform

,

bucket lift truck

DFAC D9 20m Truck Mounted Articulated Aerial Work Platforms EURO 5

 20M truck mounted aerial work platform



Aerial work vehicles are special vehicles that carry staff and use equipment to the site and carry out air operations.

Aerial work platform details:

Main Specifications
Product Brand DRZ The first Batch 287
Product Name aerial work platform Product Model DRZ5110JGKE5

Total Weight (Kg) 10500 Volume(m3)
Rated Weight(Kg)   Overall Dimension(mm) 10100*2500*3800
Curb Weight(Kg) 10305 Cab seats (man) 3
Approach angle/departure angle(°) 16/10 Front overhang/Rear overhang(mm) 1450/2850
Number of axles 2 Wheelbase(mm) 4700 / 5100
Axle Load(Kg) 3800/6700 Maximum Speed(Km/h) 90
Chassis Specifications
Chassis Model EQ1128GLJ2 Chassis Name Truck chassis
Brand Name Dongfeng Manufacturing enterprise Dongfeng motor co.
Wheel specification 10.00R20 14PR Number of wheels 6
Plate spring count 9/10+8 Front gauge(mm) 1750
Fuel Species Diesel Track rear(mm) 1800
Engine type Engine manufacturing enterprise Displacement(ml) Power(Kw)
YC6J180-50 Guangxi yuchai machinery co., LTD 6500 132


Aerial work platform

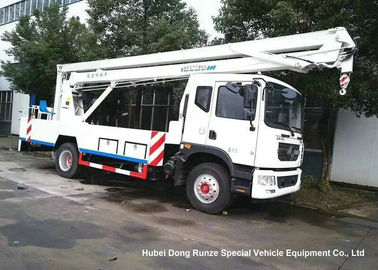

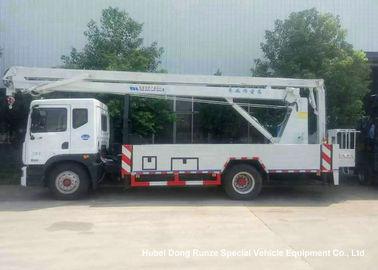

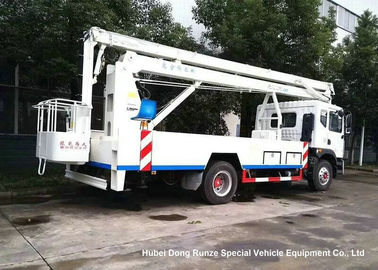

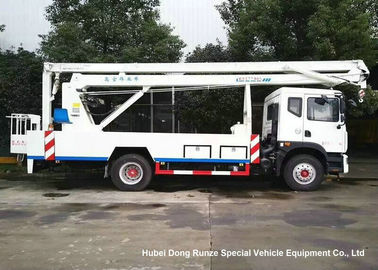

 Truck Photo show:

Dongfeng 4*2 telescopic boom high altitude working truck
 DFAC D9 20m Aerial Platform Truck EURO 5 , Ruck Mounted Hydraulic PlatformDFAC D9 20m Aerial Platform Truck EURO 5 , Ruck Mounted Hydraulic PlatformDFAC D9 20m Aerial Platform Truck EURO 5 , Ruck Mounted Hydraulic PlatformDFAC D9 20m Aerial Platform Truck EURO 5 , Ruck Mounted Hydraulic PlatformDFAC D9 20m Aerial Platform Truck EURO 5 , Ruck Mounted Hydraulic PlatformDFAC D9 20m Aerial Platform Truck EURO 5 , Ruck Mounted Hydraulic PlatformDFAC D9 20m Aerial Platform Truck EURO 5 , Ruck Mounted Hydraulic PlatformDFAC D9 20m Aerial Platform Truck EURO 5 , Ruck Mounted Hydraulic Platform

 Shipment option

CBU terms should be chosen for such tanker shipment. By bulk ship, or RORO car carrier ship. some by Flat /Frame container
