Trailer Photo show:









Optional: 36cbm Fuel Tank Trailer, 38cbm Oil Tank Trailer, 40m3 Diesel Tank Trailer, 45cbm Liquid Tanker Truck Trailer, 48cbm Crude Tanker Semi Trailer, 50,000liters Fuel Tank Trailer, 55,000 Liters Oil Tanker Truck Trailer, 60,000 Liters Tank Truck Trailer,Etc.

Contact

Cell 008615271357675
WhatsApp: 8615271357675 tictrucks#gmail.com

Wechat:king253725877 ; skype tomsongking



All Specification And Design Can Be Customized !



Advantages:

1. The Fuel Tanker Trailers Transportation With High Efficiency,Strict Testing Of Weld Sealing Solid Tyre, High Elastic, Wear-Resisting.

2. The Axles Can Be Fuwa / Bpw With Different Tonnages By Your Need With Price Differences. The Suspensions Can Be: Air Suspension, Mechanic (Leaf Spring Suspension) Etc.

3. The Loading Deck Can Be Concave Beams, Tire Appeared Cover, Totally Flatbed, Or Extendable. The Loading Ramps Can Be Rear End Designed, Or Front Loading Ladders, Which Can Be Mechanic Spring Ladders And Hydraulic Loading Ramps By Different Needs.

4. The Material Of The Tank Can Be Aluminum Alloy, Carbon Steel Etc.

Trailer description

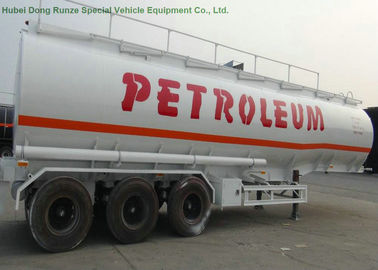

30,000L-45,000L 3-axle Tank Semi-trailer
Feature:	Carry Fuel, Oil, Diesel, Drink water, Milk, Beer and other chemical liquid
Dimension(L*W*H):	11000*2500*3700mm(30,000L) 11700*2500*3750mm(40,000L) 12700*2500*3750mm(50,000L) 13000*2500*3750mm(60,000L) 13700*2500*3750mm(70,000L)
Model	DRZ9350GRY
Material:	Carbon Steel	Stainless Steel	Aluminum
Compartment:	3-6
Capacity(kgs):	35,000L-45,000L
Tare weight(kgs):	10,000-11,000kgs	10,000-11,000kgs	6,000-7,000kgs
Kingpin	The world-famous JOST brand bolt-in/welded type 3.5”/2”
Landing gear	JOST brand two-speed manual operation 19”
Tire size	11.00R20,11R22.5,12R22.5,315/80R22.5,385/65R22.5
Rim size	8.25*22.5,9.00*22.5,11.75*22.5
Axle	Original BPW-12T/ FUWA-13T
Leafs spring	Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension
Brake system	One unit WABCO RE 4 relay valve; four units T30/30 spring brake chamber; two units T30 spring brake chamber; two units reliable local brand 45L air tank; two units reliable local brand standard coppery air-connector.
Manhole:	Aluminum alloy ø500mm(20”) manhole with aluminum alloy cover; with breather valve;
Discharge Valve	Aluminum alloy discharge valve with cover
Foot Valve	Pneumatic control DN80 aluminum alloy foot valves
Pneumatic Control system	1set Pneumatic Control combined switch 1unit emergency switch
Discharge Hose	2 units 3”×6M factory PVC hose with quick coupling on both ends
Vapor Recovery & Overfill system	Optional
Fire Extinguisher Carrier	2 units at the left of rear of tanker, include 2 units 8kg dry powder type fire extinguisher inside
Electric system:	One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Prime & Topcoat painting	S.A.2.5standard sandblasting ;Zinc-rich & Polyurethane painting
We can build the trailers according to customer’s design and requirement



Loading and Packing

Warranty period and after sale service

FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery after production finish.
2. 50% contract value as the deposit by T/T,50% contract value payoff before delivery after production finish
