Product Details:
Payment & Shipping Terms:
|
| HS-Code: | 8705909990 | Cell: | 8615271357675 |
|---|---|---|---|
| Tank Material: | Carbon Steel ,stainless Steel ,aluminium Alloy | Dimension: | 9580 * 2500 * 3400 Mm |
| Superstructure: | Flow Meter, Rolling Hose,nozzle , Compartments Number | Pump: | Oil Pump Mounted |
| Highlight: | gasoline tanker truck,fuel road tanker |
||
Beiben 20000LOffroad Petrol Tanker For Petroleum Oil /Gasoline/ Petrol/ Diesel Transportation With PTO Pump
Driving Type: 6*4 6*6 , AWD, off-road , 10 wheel ,
Capacity: 12000L, 15000L, 18000L, 20000L.....30000L
Steering Wheel: Left Hand Drive and Right Hand Drive
| North-ben BeiBen 6x4 6x6 Off-road Fuel Oil Tanker Truck Manufacturer | ||
| General | ||
| Chassis Brand | North Benz | |
| Overall Dimension | 9580 * 2500 * 3400 mm | |
| GVW / Kerb Weight | 25,000 kg / 12,400 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Air conditioner is equipped | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Weichai engine(Chinese top brand) | |
| Power | 336 Ps (247 KW) | |
| Displacement | 9726 ml | |
| Emission Standard | Euro III | |
| Chassis | Drive Type | 6X6, left hand drive |
| Transmission | 9-speed front, 1 reverse | |
| Wheelbase/No. of axle | 4450+1450 mm / 3 | |
| Tyre Specification | 12.00-20 | |
| Tyre Number | 10 tyres and 1 spare tyre | |
| Max Speed | 85 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 18,000 Litres ( About 4,700 gallons ) |
| Tank Material | Carbon steel | |
| Pump | Equipped for overhead delivery, 1000 litres / min | |
| Suction Head | 6 m | |
| Hose | High quality, wire strengthened hose, with cooper wire, anti-static | |
| All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers…….. | ||
| Optional | ** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)…… ** It can be divided into many compartments. ** Devices can be equipped: fuel counter (flow gauge), fuel dispenser, hose reel, level gauge…… ** Heat preservation & heating system could be added. ** Bottom loading system can be equipped. |
|

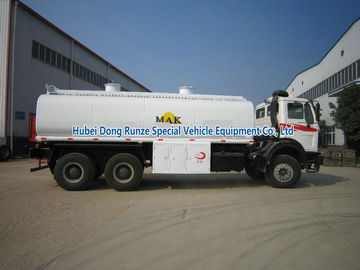

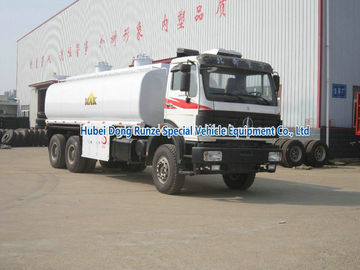

Truck Photo show:
>Main accessories for your Option:
Flow meter /gallon meter,oil pump,reel hose,independent compartments,aluminum alloy manhole,
stainless steel manhole,European standard aluminum alloy pneumatic bottom valve,API connectors,
Pneumatic swift combination,anti-flow system,vapor recovery system,liquid level detector.
Beiben 6x4 10 Wheels 20000L Petrol Tanker Diesel Fuel Storage Tank Oil Transport Tanker Truck
| Beiben 6x4 10 Wheels 20000L Petrol Tanker Diesel Fuel Storage Tank Oil Transport Tanker Truck | |||||
| Vehicle model | Oil tank truck | Overall dimensions (mm) | 10150x2500x3470 | ||
| GVW (kg) | Appro×25000 | Fact loading capacity (L) | 17000 | ||
| Mass in working order (kg) | Appro×9470 | Max. Speed (km/h) | 85 | ||
| Chassis Description | |||||
| Chassis Model | ND12500B51J6Z00 | ||||
| Cab | Standard cabin with Left hand drive | ||||
| Color | Optional | ||||
| Allowable person in cab | 2/3 | ||||
| Wheel base (mm) | 4800+1350 | ||||
| Front/Rear track base (mm) | 6510/1860 | ||||
| Front/Rear overhang (mm) | 1245/2845 | ||||
| Number of axles | 3 | ||||
| Axle | Front axle | 6700 | |||
| Rear axle | 18000 | ||||
| Traction system | 6*4 | ||||
| Operation control system | Power steering | ||||
| Braking system | Full air | ||||
| Electric system | 24V | ||||
| Transmission | 8speed | ||||
| Spring plate | 8/13 | ||||
| Tire specification | 10.00R20 | ||||
| Tire quantity | 8+1 | ||||
| Engine Description | |||||
| Engine model | WP10.300E40 | ||||
| Emission standard | Euro 2 | ||||
| Exhaust/output | 9726/221 | ||||
| Horse power | 300hp | ||||
| Up-parts Description | |||||
| Tank Dimension (mm) | 7800×2150×1350 | ||||
| Standard Equipment |
1.Equipped with oil pump, oil interface, oil hose suite, flow gauge.
2.Tank is made of 5mm carbon steel .The whole tank can be separated into several unattached parts . Diaphragm is welded in the middle of tank to reduce the pressure during the transportation .
|
||||
| Working Condition: |
1,Altitude: 0-4500m 2,Temperature: -350C~+450C 3,Relative humidity: 80% 4,Wind force: ≤8 degree |
||||
FAQ
· MOQ:1 SET
· Delivery date:25 workdays after we received deposit.
· Payment term:
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery after production finish.
2. 50% contract value as the deposit by T/T,50% contract value payoff before delivery after production finish
