Product Details:
Payment & Shipping Terms:
|
| HS-Code: | 8705309000 | Cell: | 8615271357675 |
|---|---|---|---|
| Cabin: | With A/C | Key Parts: | Fire Pump Fire Fighting Equipment |
| Drive Type: | LHD/RHD 6x6 | Wheelbase: | 4500/4700 Mm |
| Capacity: | Water 3000 Foam 1500 | Overall: | 8120*2480*3350mm |
| High Light: | fire fighting vehicles,fire service truck |
||

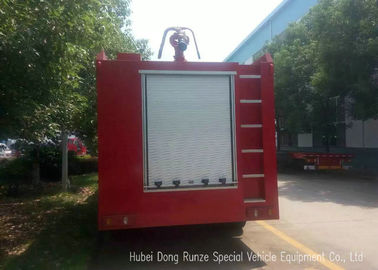

Dongfeng King Run Offroad 4X4 Water Foam Fire Truck With Water Tank 3000 Liters Foam 1500 Liters
Dongfeng 4x4 Off-Road Fire Truck
1. The Chassis Is Dongfeng Brand, One Of The Largest Chassis Manufacturer In China.
2. Our Fire Truck Superstructure Are Frame-Structure Type, More Easy For Maintenance And Repair In The Future.
3. Tanker Body Adopt High Quality Carbon Steel Or Stainless Steel, Tanker Body Inside All Made 3 Layer Of Anticorrosive Treatment.
4. The Fire Pump Is China Ccc Quality Approved, Also Could Option Import Fire Pump.
5. We Accept Custom-Made Fire Truck
6. This Fire Truck Available Of Right Hand Drive Truck Orders.
7. 4X4 Off-Road Drive, More Easy For Handle Tough Road Condition.
|
Overall parameters
|
Type of Vehicle
|
dongfeng 6cbm water tanker fire truck
|
|
|
Dimension(L*W*H)
|
8120*2480*3350(mm)
|
||
|
GVW
|
15000KG
|
||
|
Curb Weight
|
8550KG
|
||
|
Rated loading weight
|
6000KG
|
||
|
Chassis parameters
|
|
Chassis Model
|
4x4
|
|
Manufacture
|
DONGFENG Cummins
|
||
|
Cab
|
single or double cabin
|
||
|
front/rear suspension
|
1430/1860(mm)
|
||
|
Engine
|
Engine Model
|
190
|
|
|
Fuel
|
Diesel
|
||
|
Quantity of cylinder
|
6
|
||
|
Horse Power
|
190HP
|
||
|
Rated Power
|
132KW
|
||
|
Air Displacement
|
4500ML
|
||
|
Emission
|
euro 3
|
||
|
|
Driving Type
|
4*2
|
|
|
Steering Wheel
|
left/right hand drive
|
||
|
Gear-box
|
6 gears
|
||
|
Brake Type
|
Air
|
||
|
Quantity of Axle
|
2
|
||
|
Wheel Base
|
4500/4700 mm
|
||
|
Axle load
|
6000/10000
|
||
|
Quantity of Tire
|
6+1(spare)
|
||
|
Tire Type
|
10.0-20
|
||
|
Parameters of fire fighting part
|
Liquid tanker
|
Volume
|
Water Tank 3000 Liters Foam 1500 Liters
|
|
Material
|
Corrosion resistant steel plate, carbon steel
|
||
|
Structure
|
Welding, steel baffle plate inside, including also :2 manholes
|
||
|
Pump
|
Model
|
CB10/40
|
|
|
Pression
|
1.0 MPa
|
||
|
Flow
|
40L/s
|
||
|
Suction depth
|
≥7m
|
||
|
Suction time
|
≤50s
|
||
|
Installation
|
Rear
|
||
|
Pipeline system
|
-
|
||
|
Powder system
|
Volume
|
-
|
|
|
Material
|
-
|
||
|
Pressure designed
|
-
|
||
|
Working pressure
|
-
|
||
|
Fire fighting nozzle
|
Model
|
PL32
|
|
|
Pression
|
1.0MPa
|
||
|
FLow
|
32L/s
|
||
|
Range
|
Water≥60m；Foma≥55m
|
||
|
Horizontal rotation angle
|
360°；angle of elevation－30°～80°；
|
DongFeng foam fire truck from truck
Dongfeng King Run Water Foam Fire Truck With Water Tank 4000 Liters Foam 1000 Liters
| DongFeng foam fire truck from truck Manufacturer | |||
| General | |||
| Truck Name | Foam Fire Truck | ||
| Dribe Type | 4*2 | ||
| Vehicle Brand | DRZ | ||
| Chassis Brand | DongFeng | ||
| Overall Dimension | 8250*2480*3310 | ||
| GVW/Kerb Weight | 15550/8100kg | ||
| Cab | |||
| Cab Capacity | 2+4 | ||
| Steel Wheel | Power-assisted left hand drive | ||
| Engine | |||
| Engine Brand | DongFeng | ||
| Fuel Type | Diesel | ||
| Power | 132kw | ||
| Displacement | 5900ML | ||
| Emission Standard | Euro 3/Euro 4 | ||
| Engine Type | 4 cylinders in line,turbo-charged diesel engine,inter-cooling,high pressure common rail | ||
| Chassis | |||
| Chassis Brand | DFAC 4X4 | ||
| Wheelbase | 4700 mm | ||
| Drive Type | 4×2, left or right hand drive | ||
| No.of axle | 2 | ||
| Tyre Specification | 9.00-20 | ||
| Tyre Number | 6 | ||
| Max Speed | 80 km/h | ||
| Paint | Metallic paint | ||
| Approach/departure angle(°) | 20/13 | ||
| Front/rear hang(mm) | 1430/2130 | ||
| Superstructure | |||
| Tank Material | Carbon Steel/Stainless Steel | ||
| Tank Capacity | Water Capacity(L) | 3000 | |
| Foam Capacity (L) | 1000 | ||
| Fire Pump | Low Pressure(L/S/MPa) | 40.0/1.0 | |
| Medium Pressure(L/S/MPa) | 20.0/2.0 | ||
| Low and Medium Pressure (L/S/MPa) |
Low Pressure | 40.0/1.0 | |
| Medium Pressure | 20.0/2.0 | ||
| Fire Gun | Water | Flow(L/S) | 32 |
| Nozzle Pressure(kpa) | ≤1000 | ||
| Range(m) | ≥50 | ||
| Foam | Flow(L/S) | 32 | |
| Pressure(kpa) | ≤1000 | ||
| Firing Range(m) | ≥45 | ||
| Mixing Ratio | 6~7 | ||
| Other | Rotation Angle | 360 | |
| Angle of Pitch | -15~45 | ||
| Hose | High quality ,wire stregthened hose,with cooper wire,antistatic | ||
| Optional | |||
| Accessories:Typical modern fire apparatus carries equipment for a wide range of fire fighting and rescue. | |||
| NOTE:Any part can be customized depending on customers' demand. | |||
CBU terms should be chosen for such tanker shipment. By bulk ship, or RORO car carrier ship. some by Flat /Frame container
