Product Details:
Payment & Shipping Terms:
|
| HS-Code: | 8716391000 | Cell: | 8615271357675 |
|---|---|---|---|
| Tires:: | 11R22.5, 12 Tires + 1 Spare Tires | Axle:: | 13T*3, FUWA, L1, BPW, Etc. |
| Overall Dimension:: | 12500mm*2490mm*1550mm | Twist Locks: | 12 Sets |
| Highlight: | fuel tanker semi trailer,oil tank trailer |
||

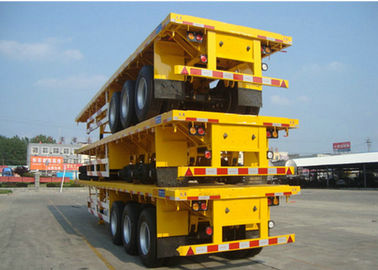

3 Axle Flatbed Container Transport Semi Trailer With 12 Twist Locks And 12 Tyres 50T
| Weight: | Tare Weight | 7500kg |
| Loading Capacity | 70T flat bed semi trailer | |
| Axle Weight Load | 13T capacity per axle | |
| Specification: | Axle number | 3 |
| Axle Brand | Fuwa/BPW/Optional | |
| Suspension | Mechanical Steel Spring Suspension | |
| King Pin | JOST brand 3.5inch bolts type | |
| Dimensions (LxWxH) |
12500×2500×1500mm (as your need) |
|
| Support legs | 28T | |
| Wheel Rim | 9.00-22.5 Or 8.0-20/8.5-20 Vacuum tire | |
| Wheelbase | 7180/6680/6260+1310+1310mm | |
| Steel Spring | 10-13 pieces per axle | |
| Twist lock | 12 sets twist lock for 1*20ft,2*20ft,1*40ft container | |
| Landing Gear |
Manual operating, Heavy duty landing gear (Brand Optional upon choice) |
|
| Floor | 3-5 Diamond steel plate | |
| Accessories | 1 Set standard tool box | |
| Light |
Tail lamp with turn signal, brake light & reflector, side lamp etc. |
|
| Painting | 1coat of anticorrosive prime, twice coats of final paint | |
| Tire: | Tire spe. | 12R22.5 Vacuum tire /11.00R20 |
| Number of Tire | 12 pieces | |
| Spare Tire Carriers | 2 pieces | |
|
Frame: (specs. and materials) |
Main beam |
Q345 Steel The height of the beam is500mm; Upper plate:14mm;Down plate is 16mm; Middle plate is 8mm. |
| Cross beam | 10# channel steel | |
| Side beam | 16# channel steel | |
| Brake | Brake Chamber |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); One piece of 45L air tanks |
| Brake system | Dual Line Brake system (ABS Optional upon choice) |
| Tare Weight | About 7.5T |
| Dimension | 12500mm*2490mm*1550mm |
| Loading Capacity (T) | 40 T |
| Axle | 3 axles/ 2axles, 13 T FUWA /Huajing Brand |
| Rim | 9.00-22.5 (special for export market) |
| Tire | 12.R22.5 13pieces |
| Suspension | Air suspension ( Mechanical America Type optional) |
| Spring leaf | 90(W)mm*13(Thick)mm*10 Layer |
| King pin | JOST brand 3.5inch bolts type |
| Support leg | China brand 28Tons (Double speed) |
| Main beam |
Height: 500mm, upper plate is 14mm, middle plate is 8mm, Down plate is 16mm; Material is Q345B Steel |
| Side beam | Q235 16# channel steel |
| Platform | 3mm diamond platform |
| Side wall | Height is 800mm, you can choose freely. |
| Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); One piece of 45L air tanks |
| ABS | Without (optiona) |
| Twist Locks | Eight pieces (Lifting type) |
| Valve | WABCO valve |
| Light | LED light |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | 1 piece:equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive primer, twice coats of final paint |
| Shipping Terms | By bulk cargo carrier, RORO or 40HQ container. |
Main frame made from high tension steel
International standard dimension and fitting
Suitable for container transporting and common cargo
Sidewall, headboard, side pillars as options.
Normally, two standard flatbed container trailer can be disassembled and loaded into one 40ft ISO container. Local assembly is required for this type of shipment and the assembly work is very easy. Bulk transportation is also available, 3 flatbeds make up a bundle. The total freight cost will be saved by almost 30%.
applyed Certificate of Origin (Form E) issued by HUBEI ENTRY-EXIT INSPECTION AND QUARANTINE BUREAU for costumer pay 0 import Tax.
