Product Details:
Payment & Shipping Terms:
|
| HS-Code: | 8716319000 | Cell: | 8615271357675 |
|---|---|---|---|
| Tri-axle: | FUWA,L1.BPW | Tires: | 12R22.5 |
| Tanker Material:: | Steel | Function:: | Oilfield,crude Oil , Slurry,Fecal ,solids,Sewage,sludge |
| Capacity: | 22000Liters | Tank Steel: | 5,6 ,8mm |
| High Light: | cesspit emptier truck,sewer cleaning vehicles |
||

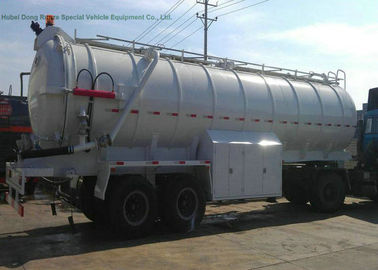

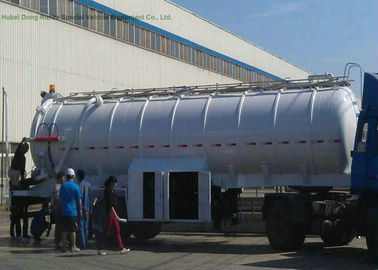

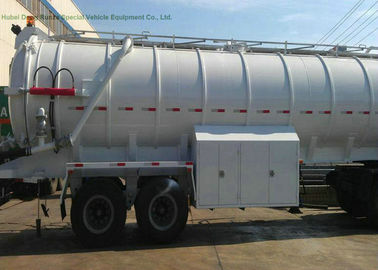

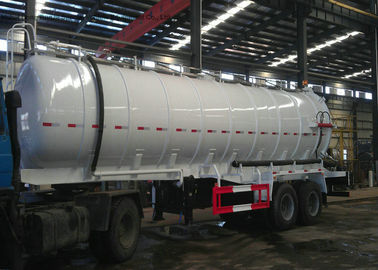

2 Axles Vac Semi-Trailer For Off-Road And Oil Field Operation 20000 ltr
| Overview | |
| Name | Vacuum Suction Semi Trailer |
| Dimension(Lxwxh) | 10540X2490X3990 (Mm) |
| Total Mass | 43000 Kg |
| The Parameters Of Trailer | |
| Axle Number | 2/3 |
| Leaf Spring | 12 |
| Tire Model | 11.00R20 |
| Axles Brand | Optional: Fuwa Or Bpw |
| Suspension | Independent Stamping Steel Rigid Suspension (Or Air Suspension) |
| Kingpin | 50# Or 90# |
| Supporting Device | Linkage Leg |
| Brake Chamber | Abs |
| The Parameters Of Equipment | |
| Color/Logo | Customizable |
| Material | 6mm Sarbon Steel/Stainless Steel/Aluminium Alloy Etc. |
| Tank Capacity | 20-45 m3 |
| Vacuum Pump Rotation Speed | 800r/m-1400r/m |
| Max. Suction Lift | >6m |
| Vacuum | >500mmhg |
| Rotation Direction | Clockwise |
| Length Of Pipe | 5-10m |
| Time For Full Sucktion | <5min |
| Common Accessories | Vacuum Pump (Imported One Available), Ball Valve, Pressure Meter, Window For Showing Liquid Level,Lock System For Rear Cap, Four-Way Valve, Moisture Separator, Sprinkler (Optional), Alarm For Full Suction (Optional) |
| *The Above Parameters Are Only For Reference. For More Specific Requiremets Suiting Your Case, Please Contact Me. Thanks! | |
All Specification And Design Can Be Customized !
Oilfield / Fecal , solids, liquids Sewage , sludge, crude oil or slurry tank trailer with a heavy duty vacuum designed to pneumatically load fecal, solids, liquids, sludge, crude oil or slurry through suction lines in diameter with 3" being the norm. There are two different ways to mount the pump either directly on the truck with the vacuum drive powered by the truck motor, or on the trailer with an independent motor. We provide various sizes of fecal suction trailers and sewage suction trailers with capacities ranging from 20cbm to 45cbm
Contact
Cell 008615271357675
WhatsApp: 8615271357675 tictrucks#gmail.com
Wechat:king253725877 ; skype tomsongking
Tri-Axle 25000 Litres Sewage Vacuum Suction Tanker Semi Trailer
2 . Parameters of Sewage Suction Semi Trailer
| Item | Specifications |
| Product model name | 9400TXW Sewage Suction Semi Trailer |
| Overall dimension(mm) | 10860x2500x3700 |
| Total weight(kg) | 40000 |
| Curb weight(kg) | 13000 |
| Rated Loading(kg) | 27000 |
| Tank volume(L) | 25000 |
| Tank material | Q235 carbon steel |
| Tank material thickness | 8mm |
| Number of axles | 3 |
| wheelbase(mm) | 5210+1300+1300 |
| Tires number | 12 |
| Tire specification | 11R22.5 12PR,11.00R20 12PR |
| axle | FUHUA 13T |
| Tow point | 90# 50# |
3 axle 30CBM vacuum tanker trailer
Features
3 axle 30CBM vacuum tanker trailer
Loading capacity: 30,000 litres
Overall dimension: 11000*2500*3800mm
Vacuum pump: Hydraulic vacuum pump with water cooling system
Rear door: Opened by hydraulic cylinder
Axle: 9T*3 (FUWA, Anqiao, Man, York or BPW)
Frame: Q550 high tension steel
Tanker body: High tension steel, 8mm thickness
Kingpin: 2'' Kingpin JOST
Landing gear: Double speed JOST
Spare tyre carrier: 1~2
Brake system: Wabco dual line pneumatic brake line
Electrical system: 12/24V, 7 pin socket (US, EU or Australian standard)
Accessories: Handrail, ladders, fire extinguisher
Light: tail lamp, side lamp, brake lamp, etc. All LED.
Surface process: Sandblasted
Painting: base coating + surface painting.
| No.1 | Main Components | Detail Descriptions |
| 1 | Vacuum Tanker | Design Pressure +/-2 Bar,Can Be Made By Carbon Steel,Stainless Or Aluminum,Tank Shell 6mm Thick,Tank Volume 20 To 40Cbm,6sution Pipe And 6 Discharge Port,2 Pcs 450mm Dia Manhole On Top,On Ladder In Front Of The Tank. |
| 2 | Vacuum System | Rotary Pump,500 To 3000Cbm/H,Locate In Front Or Under The Tank,Diesel Engine Brand Is Kofo Or Commins |
| 3 | Running System | 2x13ton Fuwa Axle,Double Wheel,8pcs 11.00R22.5 Tyre With 8pc Rims,Merchanical Suspension,3.5"Kingpin,Jost Brand Landing Gear. |
| 4 | Brake System | Double Line Air Brakes |
| 5 | Electronical System | Complete 24V System In Water Proof Installation,Rear Lighting With Rear, Stop, Parking, Direction, Fog, Reverse Lights, Side Lights. |
| 6 | Painting | All Steel Parts Are Steel Sand Blasted Before Painting,Painted In Two Primer And Two Finish Paint,Color Will As Per Customer's Requirement |
| 7 | Remarks | Above Information Just For Reference,It Could Be Changed According To Customer's Requirement,Further Information Please Kindly Contact Us |
Warranty period and after sale service
FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery after production finish.
2. 50% contract value as the deposit by T/T,50% contract value payoff before delivery after production finish
