Product Details:
Payment & Shipping Terms:
|
| HS-Code: | 7311009000 | Cell: | 8615271357675 |
|---|---|---|---|
| Pressure: | 1.6MPa≤p<10.0MPa | Design Code:: | GB150, ASME |
| Tanker Material:: | Steel | Other Key Parts: | Safety Valve, Cut-off Valve, Pressure Gauge,Digital Scales |
| Capacity: | 20000L | Tank Steel: | 12 -14mm |
| High Light: | lpg storage tanks,lpg gas filling station |
||

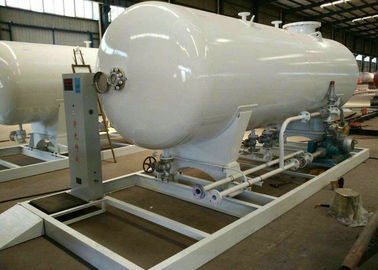

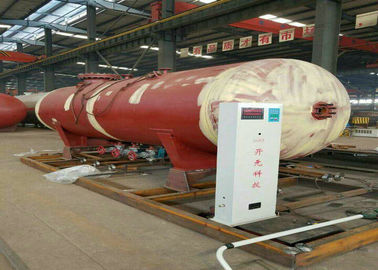

LPG Gas Cylinders Refilling Plant 20000Liters For Mobile LPG Filling Stations 8Tons -10Tons With Digital Scales
LPG Gas Cylinders Refilling Plant 20000Liters
| LPG
Filling Plant |
Item | data |
| Filling medium | LPG | |
| capacity | 20000Liters | |
| Design pressure | 1.724Mpa | |
| Thickness of body | 10mm | |
| Thickness of head | 10mm | |
| Material | Q345 | |
| Corrosion allowance | 1mm | |
| Hot treatment type | Stress relieved hot treatment | |
| Kerb weight | 4330kgs | |
| Loading weight | 8400kgs | |
| Outside dimension(inner
diameter*thickness*length |
1800*10*8170mm | |
| Filling ratio | 0.95 | |
| Hydraulic test pressure | 2.14Mpa | |
| Service year | 20 | |
| Filling ratio | 420(50℃) |
With Rotation LeveL Meter, Safe Valve, Pressure Meter, Temperature Meter.
With LPG Filling Scale Weight 1set to 6sets.
With Special LPG Motor with Return Valve to make sure saftly operate ,
LPG Pump and LPG Compressor Machine.
20000Liters LPG Filling Stations can filling LPG into tank body and refilling LPG to Cylinder for Cooking Gas, and other LPG Cars

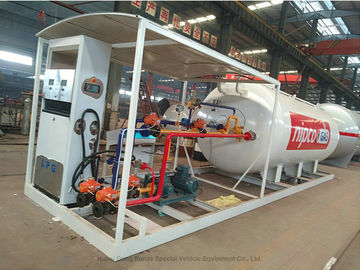

| Information for LPG tank skid station | ||
| General | Item Name | Portable LPG Gas Station |
| loading Weight (kg) | 8400 kg | |
| Tank volume (liters) | 20000 liters | |
| working Medium | LPG (propane) ,0.42 Kg/M3 | |
| Gas Dispenser | Rate of flow (m³/min) | 1.5 |
| Speed (R/m³) | 730 | |
| Motor power(KW) | 22 | |
| Equipment | gas dispenser, gas gun,flow meter, pressure gauge, thermometer,discharge valve,etc | |
| LPG storage tanks | ||||
| tank diameter | 1800mm | 2000mm | 2100mm | 2200mm |
| tank type | III | III | III | III |
| working Medium | LPG (propane) | LPG(propane) | LPG(propane) | LPG(propane) |
| Design Specific Gravity | 0.42 Kg/M3 | 0.42 Kg/M3 | 0.42 Kg/M3 | 0.42 Kg/M3 |
| media characteristics | Flammable and explosive | flammable and explosive |
flammable and explosive |
flammable and explosive |
| capacity | 20M3 | 20M3 | 20M3 | 20M3 |
| External Dimensions (length*width*height) | 8174*1820*2410mm | 6724*2024*2614mm | 6154*2124*2714mm | 5608*2224*28514mm |
| tank weight (nominal) | 4820kg | 5150kg | 5050kg | 5080kg |
| max payload weight | 7980kg | 7980kg | 7980kg | 7980kg |
| tank material | Q345R | Q345R | Q345R | Q345R |
| Barrel design thickness | 10mm | 12mm | 12mm | 12mm |
| Head design thickness | 12mm | 12mm | 12mm | 14mm |
| welded joint coefficient | 1.0 | 1.0 | 1.0 | 1.0 |
| design temperature | 50ºC | 50ºC | 50ºC | 50ºC |
| working temperature | -20~50 ºC | -20~50 ºC | -20~50 ºC | -20~50 ºC |
| Corrosion allowance | 1.0 mm | 1.0 mm | 1.0 mm | 1.0 mm |
| design pressure | 1.77 MPa | 1.77 MPa | 1.77 MPa | 1.77 MPa |
| Hydraulic test pressure | 2.22 MPa | 2.22 MPa | 2.22 MPa | 2.22 MPa |
| leak test pressure | 1.77 MPa | 1.77 MPa | 1.77 MPa | 1.77 MPa |
| Heat treatment type | Wholly get rid of tress | Wholly get rid of tress | Wholly get rid of tress | Wholly get rid of tress |
| Paint | paint white color, or paint the color you request. | paint white color, or paint the color you request. | paint white color, or paint the color you request. | paint white color, or paint the color you request. |
| The first install Accessories | Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter | Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter | Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter | Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter |
| Filling accessories for MOBILE SKID LPG STATION | ||
| Item | Specification | Quantity |
| Hydrocarbon pump | YQB15-5 | 1 |
| Anti-static motor | MM2JA160MBB | 1 |
| alarm | QJ-D-99F | 2 |
| Liquid meter | L=1800mm DN20 | 1 |
| Safety valve | A42F-25 DN50 | 1 |
| Safety reflux valve | AH42F-25 DN25 | 1 |
| Check valve | H42N-40 DN50 | 2 |
| Stop valve | J41N-40 DN50 | 25 |
| J41N-40 DN32 | 1 | |
| J41N-40 DN25 | 4 | |
| J41N-40 DN20 | 2 | |
| J41N-40 DN20 | 10 | |
| Pipe safety valve | A21F-25 DN15 | 1 |
| Discharge pipe | L=4M DN50/DN25 | 1 |
| Shock tube | L=500MM DN50 | 2 |
| Filling gun with pipe | L=2M | 3 |
| Elbow | DN65 | 2 |
| DN50 | 10 | |
| Flange | 2.5mpa DN65 | 1 |
| 2.5mpa DN50 | 50 | |
| 2.5mpa DN32 | 1 | |
| 2.5mpa DN25 | 8 | |
| 2.5mpa DN15 | 20 | |
|
Electric filling scale |
BSC-150 | 1 |
| Metal pads | DN65 | 5 |
| DN50 | 80 | |
| DN32 | 2 | |
| DN25 | 10 | |
| DN20 | 2 | |
| DN15 | 30 | |
| bolt | 16*70 | 300 |
| 16*55 | 100 | |

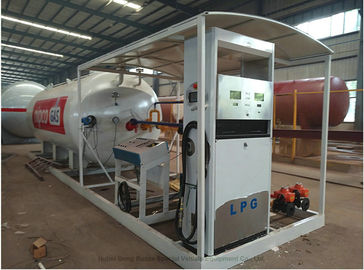

skid system lpg with automobile lpg gas dispenser is used for refilling of liquified petrol gas (LPG). As a major equipment of the LPG station, it is equipped with high-accuracy positive displacement flowmeter,microcomputer control, large LCD counter and various control valves and protection devices assuring operation safety.With advanced manufacturing technique, the dispenser has reliable quality and excellent performance with characteristics of precise ration, easy maintainance and centralized control. Each gun connects to an independent flow and metering system which prevents interference.
Warranty period and after sale service
FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery after production finish.
2. 50% contract value as the deposit by T/T,50% contract value payoff before delivery after production finish
