Product Details:
Payment & Shipping Terms:
|
| HS-Code: | 8705909990 | Cell: | 8615271357675 |
|---|---|---|---|
| Key Parts: | Telescopic Man Lift | Chassis: | DFAC |
| Dimensions: | 5995 X 2090 X 2990 Mm | Wheelbase(mm): | 3360mm |
| Rated Loading: | 200kg | Platform Height: | 8-10m |
| High Light: | truck mounted aerial platform,truck mounted aerial work platform |
||
Dongfeng 4x2 12-14M Truck Mounted Aerial Working Platform Truck LHD / RHD EURO 3
| Chinese Manufacturer 8-10 M Dongfeng High Operation Truck | ||
| General | Vehicle Brand | DRZ |
| Chassis Brand | Dongfeng | |
| Overall Dimension | 5995 x 2090 x 2990 mm | |
| GVW / Kerb Weight | 4,495 kg / 3,840 kg | |
| Cab | Cab Capacity | 2+3 persons allowed |
| Air Conditioner | With air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Dongfeng | |
| Power | 95Ps (70KW) | |
| Displacement | 3856 ml | |
| Emission Standard | Euro III , Euro IV | |
| Chassis | Drive Type | 4X2, left hand drive or right-hand drive |
| Transmission | 5-forward gears & 1 reverse | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tyre Specification | 7.00-16 or 7.00R16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Cage Rated Capacity | 200 kg |
| Working Height | 8-10 M | |
| Outriggers | 2pcs, hydraulically extend and retract |
|

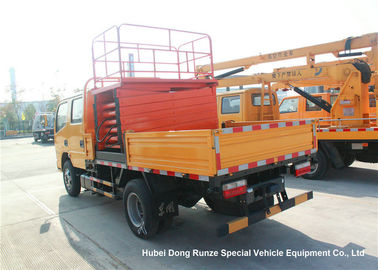

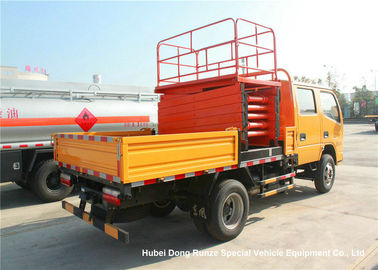

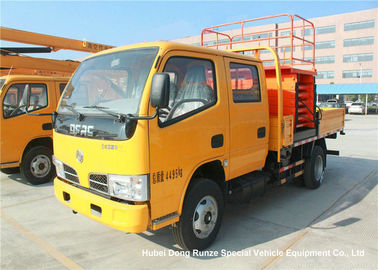

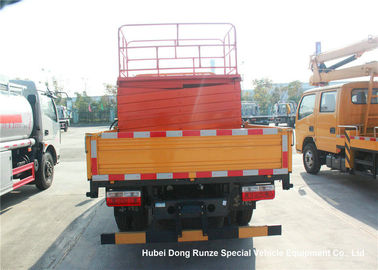

Truck Photo show:
Shipment option
CBU terms should be chosen for such tanker shipment. By bulk ship, or RORO car carrier ship. some by Flat /Frame container
