Product Details:
Payment & Shipping Terms:
|
| Tank Steel Shell: | 5mm, 6mm | Lining: | LDPE 16-20mm |
|---|---|---|---|
| Good For: | Hydrochloric Acid | HS-Code: | 8609001200 |
| Cell: | 8615271357675 | Size: | 6058*2438*2591mm |
| High Light: | iso bulk liquid container,international tank containers |
||

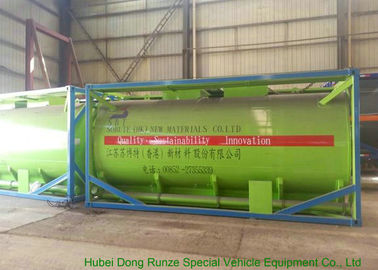

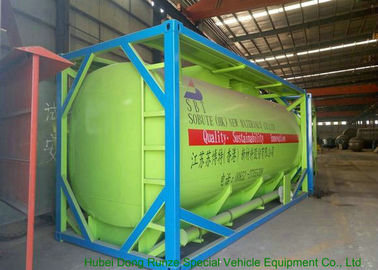

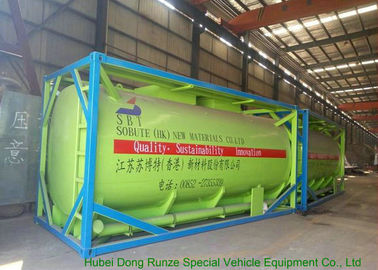

20FT HCL Acid ISO Tank Containers UN1789 Steel Lined PE 16mm 18000Liters -22000Liters
steel lined PE 16mm -18mm LDPE
Shell 5mm, 6mm
Tank net Capacity: 18000L ~20000L
Chloran；Hydrochloric Acid solution; HCL Tank Container transport solution.
20ft Tank container
| Ext. Length | 6,058mm | Ext. Width | 2,438mm | ||
| Ext. Height | 2,591mm | M.G.W. | 30000-34000kg | ||
| Tare | 5200 -6800Kg | Max. Payload | 22000-28000Kgs | ||
| Cubic Capacity |
20 -22m³ 20000 -22000Liter |
Tank Design Standard | GB 150 ,GB/ T 16563, GB/ T 1413, GB/ T 1836, GB/ T 1835.China classification society container inspection standard. | ||
| Max. Design Pressure | 2.67 bar | Calculated Pressure | 10.0bar | ||
| Testing Pressure | 4.0bar | Design Operating Temp. | -20℃～65℃ | ||
| Lining | PE Polythene lined | Material of Tank Body | Carbon steel Q235 +LDPE | ||
| Tank Body Dia. | 2,000mm | Tank Body Thickness | 6 .0mm+16mm | ||
| Manhole Dia. | 500mm | Stacking | No | ||
| Facilities | |||||
| Charging Valve | Discharging Valve | valve DN80 | |||
| Air Inlet Valve | 1.5" BSP | Pressure Relief Valve | relief valve | ||
good for the SODIUM HYPOCHLORITE transport.
good for the HYDROCHLORIC ACID transport
The physical properties of hydrochloric acid, such as boiling and melting points, density, and pH depend on the concentration or molarity of HCl in the acid solution. They can range from those of water at 0 percent HCl to values for fuming hydrochloric acid at over 40 percent HCl.
| Conc. (w/w) c : kg HCl/kg |
Conc. (w/v) c : kg HCl/m3 |
Conc. Baumé |
Density ρ : kg/l |
Molarity M |
pH | Viscosity η : mPa·s |
Specific heat s : kJ/(kg·K) |
Vapor pressure PHCl : Pa |
Boiling point b.p. |
Melting point m.p. |
| 10% | 104.80 | 6.6 | 1.048 | 2.87 M | -0.5 | 1.16 | 3.47 | 0.527 | 103 °C | -18 °C |
| 20% | 219.60 | 13 | 1.098 | 6.02 M | -0.8 | 1.37 | 2.99 | 27.3 | 108 °C | -59 °C |
| 30% | 344.70 | 19 | 1.149 | 9.45 M | -1.0 | 1.70 | 2.60 | 1,410 | 90 °C | -52 °C |
| 32% | 370.88 | 20 | 1.159 | 10.17 M | -1.0 | 1.80 | 2.55 | 3,130 | 84 °C | -43 °C |
| 34% | 397.46 | 21 | 1.169 | 10.90 M | -1.0 | 1.90 | 2.50 | 6,733 | 71 °C | -36 °C |
| 36% | 424.44 | 22 | 1.179 | 11.64 M | -1.1 | 1.99 | 2.46 | 14,100 | 61 °C | -30 °C |
| 38% | 451.82 | 23 | 1.189 | 12.39 M | -1.1 | 2.10 | 2.43 | 28,000 | 48 °C | -26 °C |
The reference temperature and pressure for the above table are 20 °C and 1 atmosphere (101 kPa).
Hydrochloric acid as the binary (two-component) mixture of HCl and H2O has a constant-boiling azeotrope at 20.2 percent HCl and 108.6 °C (227 °F). There are four constant-crystallization eutectic points for hydrochloric acid, between the crystal form of HCl·H2O (68 percent HCl), HCl·2H2O (51 percent HCl), HCl·3H2O (41 percent HCl), HCl·6H2O (25 percent HCl), and ice (0 percent HCl). There is also a metastable eutectic point at 24.8 percent between ice and the HCl·3H2O crystallization
