ISO Tank

Total 80 ISO Tank Products

Heating ISO Tank Container 20 FT For Bitumen ,Crude Oil , Low Hazardous Liquids


Bitumen Tank Containers

Shell made from Carbon Steel

Capacity of 20,000-25,000 litres nominal

MAWP of 1.75 bar

Low Hazardous liquids

Available in 20 or 30 foot sizes

Heating by direct flame, hot oil or electric heating

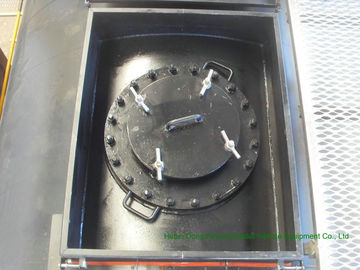

 Tank Photo show:

 Specification:

Tank Type	20’ ISO full frame collar tank, Type UN T3 portable, insulated Bitumen tank, top side rails fitted
Frame Dimensions	20’ x 8’ x 8’6”
Capacity	20000 Litres +/- 2%
M.G.W.	c
Tare (est.)	6700 kgs
Max Payload	23,780 kgs
Working Pressure	1.76 Bar
Test Pressure	2.65 Bar
Allowable Vacuum	0.21 Bar
Design Temp	-20°C to +170°C
Vessel Material	16MnDR
Shell Thickness	6 mm
Ends Thickness	6 mm after forming
Corrosion Allowance	1 mm (Max.)
Frame Material	GB/T 1591-94-Q345D
Frame to Shell	Q345D
Corner castings	ISO 1161 - 8 off
Vessel Design Code:	ASME VIII Div 1
Radiography	Shell Dished ends	ASME Spot ASME Full
Inspection Agency	LR, BV or CCS
Cargo carried	Bitumen
Design Approvals	IMDG T3, CFR 49, ADR/RID, CSC, TC, TIR, ISO, UIC, US/UK DOT

ISO Tank

ISO 40' LNG Tank Container	Bitumen tank container	ISO 20' Tank Container
IMO 1 Shell made from 316 Stainless Steel Capacity of 12,000 - 26,500 litres nominal MAWP of 4 bar For transport of: Hazardous liquids Available in 7.65, 10, 20, or 30 foot sizes Swap-bodies 7.65m and 7.82 (30,000-35,000 litres) Heating by steam or electric heating (optional)   IMO 0 Shell made from 316 Stainless Steel Capacity of 12000 - 26500 litres nominal MAWP of 4 bar For transport of Wine Fruit Juices Vegetable Oils Mineral Oils Non-hazardous Oils Available in 20 foot / 6 metres Swap-bodies 7.65m and 7.82 (30,000-35,000 litres) Heating by steam or electric heating (optional)	IMO 2 Shell made from 316 Stainless Steel Capacity of 12,000 - 26,500 litres nominal MAWP of 1.75 bar For transport of:Low Hazardous liquids Available in 7.65, 10, 20, or 30 foot sizes Swap-bodies 7.65m and 7.82 (30,000-35,000 L) Heating by steam or electric heating   Bitumen Tank Containers Shell made from Carbon Steel Capacity of 20,000-25,000 litres nominal MAWP of 1.75 bar Low Hazardous liquids Available in 20 or 30 foot sizes Heating by direct flame, hot oil or electric heating   Cement Containers Capacity of 17.5 - 25 cubic metres Pressure discharge Road transport tank container T4,T6,T7,T8,T9, T10,T11,T14,T50 portable tank;   PE Lined steel tanks for hydrofluoric acid liquid ,hydrochloric acid ,sodium hypochlorite HCl,NaOH,NaClO liquid etc.	IMO 5 Shell made from 316 Stainless Steel Capacity of 15,000 - 25,500 litres nominal MAWP of 1.75 bar For transport of gases, including: Propane Butane Refrigerants Available in 20, 30 or 40 foot sizes IMO 7 Shell made from 316 Stainless Steel or Carbon Steel Capacity of 20,000 - 24,000 litres nominal MAWP of 8 bar For transport of cryogenic gases, including: LNG Available in 10, 20, 30 or 40 foot sizes Offshore Shell made from 316 Stainless Steel Capacity of 2,000 - 10,000 litres MAWP of 5 bar For transport of gases, including: Hazardous chemicals Acid Petroleum Available in 8 x 8 x 10 sizes



T3 ISO Tank Container for Bitumen

Technical Details:

Specification: 20ft

Design Standard: ASME VIII DIV. 1

Classification Society: CCS/ABS/LR

Effective Capacity: 22.5 m³

Working Pressure: 0.175 MPa

Material of Construction: Carbon Steel Q345R

Medium: Bitumen

T4 ISO Tank Container .

Technical Details:

Specification: 20ft

Design Standard: ASME VIII DIV. 1

Classification Society: LR/BV

Effective Capacity: 19~26 m³

Working Pressure: 0.18 MPa

Material of Construction: Stainless Steel 304

Medium: Petro Chemicals, Oils. Food Grade Liquids.



T11 ISO Tank Container.

Technical Details:

Specification: 20ft

Design Standard: ASME VIII DIV. 1

Classification Society: LR/BV

Effective Capacity: 16~26 m³

Working Pressure: 0.4 MPa

Material of Construction: Stainless Steel 316L

Medium: General Liquid Chemicals

T14 ISO Tank Container(Rubber Lining)

Technical Details:

Specification: 20ft

Design Standard: ASME VIII DIV. 1

Classification Society: LR

Effective Capacity: 16~21 m³

Working Pressure: 0.4 MPa

Material of Construction: Stainless Steel 304/ Carbon Steel Q345R

Medium: Corrosive Liquid Chemicals (HCL)

T14 ISO Tank Container(HDPE Lining)

Technical Details:

Specification: 20ft

Design Standard: ASME VIII DIV. 1

Classification Society: LR/CCS

Effective Capacity: 19~21 m³

Working Pressure: 0.4 MPa

Material of Construction: Carbon Steel SA-516M

Medium: Corrosive Liquid Chemicals (Hydrochloric Acid, Ferric Chloride Solution, Sodium Hypochlorite, Hydrofluoric Acid)

T20 ISO Tank Container

Technical Details:

Specification: 20ft

Design Standard: ASME VIII DIV. 1

Classification Society: LR/CCS

Effective Capacity: 14.5~21 m³

Working Pressure: 0.667 MPa

Material of Construction: Carbon Steel SA-516M/Stainless Steel 316L

Medium: Anhydrous Hydrofluoric Acid, Titanium Tetrachloride



Liquefied Gas ISO Tank Container (T50)

GB150

T50 ISO Tank Container – 2.2 MPa, 20FT

Technical Details:

Specification: 20ft

Design Standard: GB150

Classification Society: CCS/BV

Effective Capacity: 24.5 m³

Working Pressure: 2.2 MPa

Material of Construction: Carbon Steel Q345R

Medium: R22, Butadien, Butane, Butylene, R124, Trimethylene, R12, R21, R152A, Dimetlylamine, Dimethylether, Ethylamine, Chlorethyl, Isobutene, Methylamine, R40, LPG, Propene, Trimethylamine, Vinyl Bromide, Vinyl Chloride, Ethylene, R114, Isobutane, R12B1, Propane Gas, R142B, R500, Chlorine, R134A and so on.

T50 ISO Tank Container for LPG – 1.8 MPa, 240FT

Technical Details:

Specification: 40ft

Design Standard: GB150

Classification Society: CCS/BV

Effective Capacity: 50 m³

Working Pressure: 1.8 MPa

Material of Construction: Carbon Steel Q345R

Medium: Butane, Butylene, Trimethylene, Dimetlylamine, Dimethylether, Isobutene, LPG, Propene.

ASME U

T50 ISO Tank Container - 1.38 MPa

Technical Details:

Specification: 20ft

Design Standard: ASME

Classification Society: LR

Effective Capacity: 24 m³

Working Pressure: 1.38 MPa

Material of Construction: Carbon Steel SA-612M

Medium: R134A, R22, R124, R152A, R142B, R40, R21, R12B1.



T50 ISO Tank Container –2.75 MPa

Technical Details:

Specification: 20ft

Design Standard: ASME VIII DIV. 1

Classification Society: LR

Effective Capacity: 22 m³

Working Pressure: 2.75 MPa

Material of Construction: Carbon Steel SA-612M

Medium: R22, Butadien, Butane, Butylene, R124, Trimethylene, R12, R21, R152A, Dimetlylamine, Dimethylether, Ethylamine, Chlorethyl, Isobutene, Methylamine, R40, LPG, Propene, Trimethylamine, Vinyl Bromide, Vinyl Chloride, Ethylene, R114, Isobutane, R12B1, Propane Gas, R142B, R500, Chlorine, R134A, R125, R404A, R407A, R407C and so on.



ASME U2

T50 ISO Tank Container - 3.44 MPa

Technical Details:

Specification: 20ft

Design Standard: ASME VIII DIV. 1

Classification Society: LR

Effective Capacity: 24.3 m³

Working Pressure: 3.44 MPa

Material of Construction: P460NL1

Medium: R22, Butadien, Butane, Butylene, R124, Trimethylene, R12, R21, R152A, Dimetlylamine, Dimethylether, Ethylamine, Chlorethyl, Isobutene, Methylamine, R40, LPG, Propene, Trimethylamine, Vinyl Bromide, Vinyl Chloride, Ethylene, R114, Isobutane, R12B1, Propane Gas, R142B, R500, Chlorine, Methyl Vinyl Ether, R134A, R125, R32, R404A, R407A, R407B, R407c and so on.
