Product Details:
Payment & Shipping Terms:
|
| Good For: | Fire Fighting | Certificate Of Origin: | China CO /Favour/ACFTA/ Form E |
|---|---|---|---|
| Import Tax: | 0%-20% | HS-Code: | 8705309000 |
| Cell: | 8615271357675 | Cabin: | With A/C |
| Color: | Optional Color /Logo | Key Parts: | PTO, Fire Pump CB10/60,long Alarm Lamp, Equipment Box, Fire Fighting Equipment, Sliding Roller Gate |
| Name: | Beiben Fire Fighting Water Foam Truck,Beiben Off Road Fire Fighting Truck ，6x6 Fire Fighting，AWD Fire Fighting Vehicle,Water Foam Fire Truck,Water Foam Tanker | Drive Type: | Right Hand Drive, Or Left Hand Drive. |
| Enigne Horse Power:: | 290HP, 340HP, 380HP. | Fire Pump: | (CB10/20, CB10/30,CB10/40,CB10/60 According To The Capacity |
| Capacity Of Water And Foams: | 10,000-12000 Liters Water/2000L-4000L Foam. | Fire Gun: | (PS20,PS30,PS40,PS50 According To The Capacity |
| High Light: | rescue fire truck,fire service truck |
||

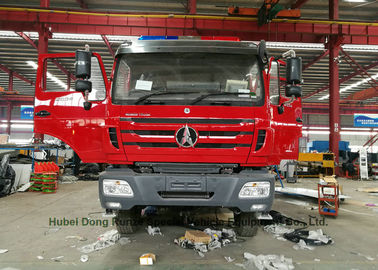

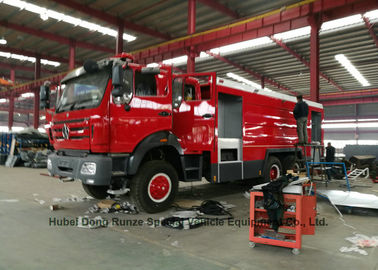

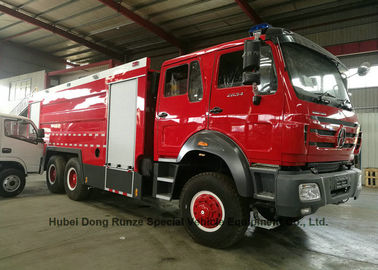

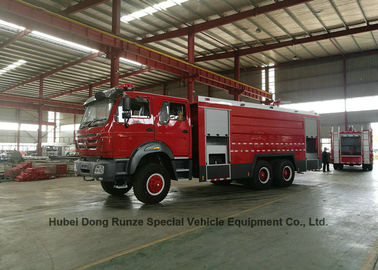

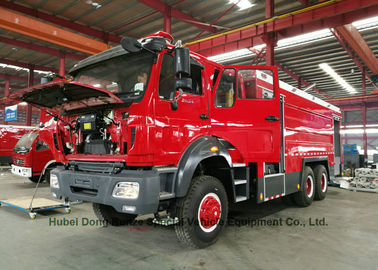

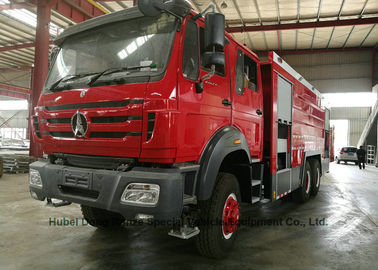

Beiben 2534 RHD Fire Fighting Water Foam Truck Off Road-6x6 AWD Vehicle
Beiben off road 6x6 water foam fire truck , Beiben 2534 , RHD/ right hand drive 12Ton water,4Ton foam,

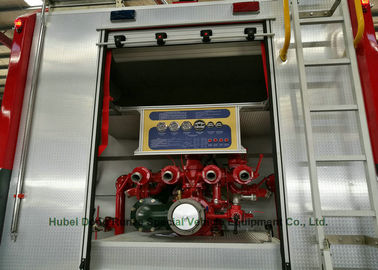

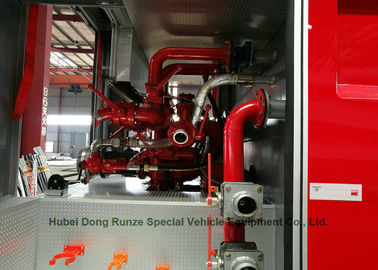

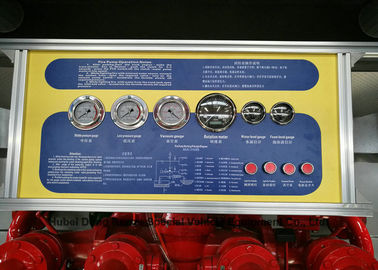

CB20.10/30.60 Fire pumps medium and low pressure pumper vehicles
Low-Pressure flow/pressure: 60L/S/1.0MPA
Medium pressure flow/pressure: 30L/S/2.0MPA
Keywords:Beiben off road 6x6 water foam fire truck , Beiben 2534 ,RHD 6x6, Beiben 2534 right hand drive ,Beiben off road ,6x6 water foam fire truck ,Beiben off road water foam fire truck ,Beiben 6x6 foam fire truck ,Beiben RHD foam fire truck ,
|
Dimension (Length*width*height) (mm) |
10660×2500×3800(mm) | ||

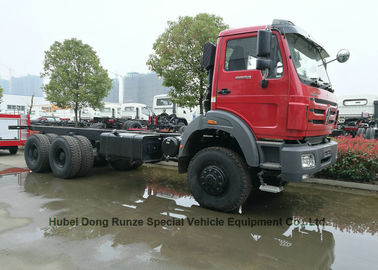

| Chassis: |
Optional 2634/2635/2638 6x6 / 2534 /2538 6x4 |
||
| Track(front/rear) (mm) | 1990/1800/1800 | ||
|
Approaching angle/ Departure angle(˚) |
16/25(°) | ||
| Suspension(front/rear) (mm) | 1410/2555(mm) | ||
| Min distance to the ground(mm) | 399 | ||
| Wheel distance(front/rear) (mm) | 4450+1450(mm) ;5050+1450(mm) | ||
| GVW (KG) | 25000kg, 26000kg | ||
| Kerb weight (kg) | 15270kg | ||
| Configuration | 6*6 /6*4 | ||
| Front slope fully laden (%) | 60 | ||
| Turning Radius (M) | 20 | ||
| Max speed (km/h) | 90 | ||
| Ground Clearance (mm) | 339 | ||
|
Engine option 340 HP;350HP; 380HP WP10.336 WP10.375 , Diesel, water cooler, 4strokes direct injection with EVB, 6 cylinder in line, inter cooler turbocharger Characterized by strong power, high reliability, good economy and low noise |
|||
| Clutch | GFX420 Dry single plate, hydraulic control booster GFX420 | ||
|
Gear box RT11509C or 9JS Mechanism, 9 forward gears,1 reverse gear. Optional:12JS Mechanism, 12 forward gears,2 reverse gear. |
|||
| Brake | Service Brake | Brake gap can be adjusted automatically, double circulation air brake system | |
| Assistant brake | Engine exhaust brake | ||
| Park brake | Spring loaded press on rear wheels | ||
| Steering | D50 circulating ball tooth fan power steering, hydraulic assisted , | ||
| Vehicle Frame | Fish belly shape, variable width, variable section, side beam trapezium structure German Benz technology | ||
| Front axle | German Benz technology. Double hoof chip air brake, | ||
| Rear axle | German Benz technology. Double hoof chip air brake, hyperbola gear, driving axle, Edge reducer | ||
| Front overhang rack | German Benz technology. Longitudinal offset plate spring, with hydraulic shock absorber cavitation effect, transverse stabilizer | ||
| Rear overhang rack | German Benz technology .Longitudinal offset plate spring, with hydraulic shock absorber, transverse stabilizer | ||
| Tire size | 12.00-20 , | ||
| PTO | N71/1B | ||
|
Electrical |
Battery | 2x12V/135Ah * | |
| Generator | 28V-35A | ||
| Starter | 5.4KW/24V | ||
| Cab |

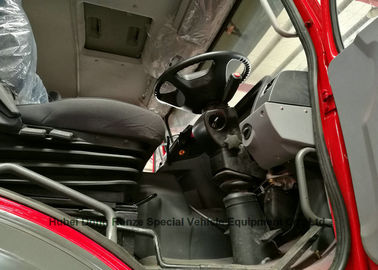

JD1 Tilting forward65˚,driver's seat adjustable German Benz technology
|
||
| capacity of water and foams | 10,000-12000 liters water/2000L-4000L foam. | ||
FFire gun PS50/PL48 Color and Logo Optional

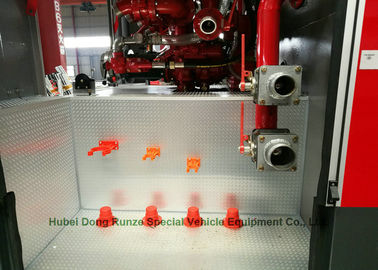

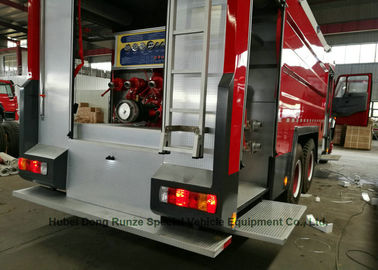

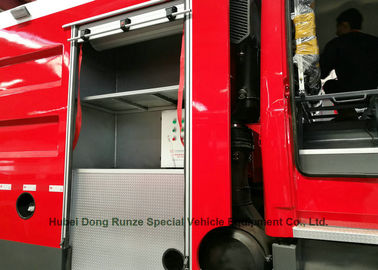

Standard configuration Chassis, sub frame, van body, America DOPPON paint baking varnish, national standard equipment box, 25 units national standard fire-fighting equipment, fire pump(CB10/20, CB10/30,CB10/40,CB10/60 according to the capacity), fire gun(PS20,PS30,PS40,PS50 according to the capacity),fire power take off, sliding gate, row type lights, reel, common tools, rear climbing ladder, water tank.
Selective configuration foam type, dry powder type, stainless tank, other requirements.
1627 NORTH BENZ fire TRUCK 4X2 WP10 engine 270HP Low-Pressure Fire Pump CB10/40Water 6000L, Foam 1770L
1630 NORTH BENZ fire TRUCK 4X2 WP10 engine 300HP Low-Pressure Fire Pump CB10/40 Water 6000L, Foam 1770L
1634 NORTH BENZ fire TRUCK 4X2 WP10 engine 340HP Low-Pressure Fire Pump CB10/40Water 6000L, Foam 1770L
1827 NORTH BENZ fire TRUCK 4X4 WP10 engine 270HP Low-Pressure Fire Pump CB10/40 Water 4100L, Foam 1700L
1830 NORTH BENZ fire TRUCK 4X4 WP10 engine 300HP Low-Pressure Fire Pump CB10/40 Water 4100L, Foam 1700L
1834 NORTH BENZ fire TRUCK 4X4 WP10 engine 340HP Low-Pressure Fire Pump CB10/40 Water 4100L, Foam 1700L
2534 NORTH BENZ fire TRUCK 6X4 WP10 engine 340HP Low-Pressure Fire Pump CB10/60 Water 8500L, Foam 2660L
2538 NORTH BENZ fire TRUCK 6X4 WP10 engine 380HP Low-Pressure Fire Pump CB10/60 Water 9000L, Foam 2660L
2634 NORTH BENZ fire TRUCK 6X6 WP10 engine 340HP Low-Pressure Fire Pump CB10/60 Water 8500L, Foam 2660L
2638 NORTH BENZ fire TRUCK 6X6 WP10 engine 380HP Low-Pressure Fire Pump CB10/60 Water 8500L, Foam 2660L
3138 NORTH BENZ fire TRUCK 8X4 WP10 engine 380HP Low-Pressure Fire Pump CB10/60 Water 12000L, Foam 3000L
3138 NORTH BENZ fire TRUCK 8X8 WP10 engine 380HP Low-Pressure Fire Pump CB10/60 Water 12000L, Foam 3000L
NORTH BENZ fire TRUCK Multifunctional equipment optional:
rear Mounted folding Crane
4T SQZ086K2/SQ4ZK2 Add $14000USD ;
5 T folding Crane SQZ106K2 / SQ5ZK2 Add $16000USD ;
6.3T folding Crane SQZ132K2/SQ6.3ZK2 Add$ 19000USD ;
Front Winch 4T Add $3000 . or Winch 5T Add $3500
Beiben Fire Fighting Water Foam Truck,Beiben Off Road Fire Fighting Truck ,6x6 Fire Fighting,AWD Fire Fighting Vehicle,Water Foam Fire Truck,Water Foam tanker Fire Truck,Water Foam tank Fire Truck,Water Foam Fire Engine Truck,Foam Fire Truck,Water Foam Fire Tender
Shipment option
CBU terms should be chosen for such tanker shipment. By bulk ship, or RORO car carrier ship. some by Flat /Frame container
Cell: 0086 152 7 135 7635 ; 0086 152 7 135 7675
WhatsApp: 8615271357675 tictrucks#gmail.com
applyed Certificate of Origin (Form E) issued by HUBEI ENTRY-EXIT INSPECTION AND QUARANTINE BUREAU for costumer pay 0 import Tax.
