ISUZU Aerial Platform Truck 14m -16m 360 Degree Turning To Left / Right Side
-
-
Large Image :
ISUZU Aerial Platform Truck 14m -16m 360 Degree Turning To Left / Right Side
|
Product Details:
| Place of Origin: |
Hubei ,China |
| Brand Name: |
Dong Run Ze |
| Certification: |
C3 |
| Model Number: |
DRZ5090JGK |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 Unit Call /WhatsApp:+8615271357675 |
| Price: |
Negotiated at Weichat:King253725877 |
| Packaging Details: |
Some Body Part By containers , Truck by Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck, we will spray antirust paint with free. please emial to <sale@tictrucks.com> |
| Delivery Time: |
25 working days |
| Payment Terms: |
TT emial to <253725877@qq.com> |
| Supply Ability: |
Ask us for Better Price <253725877@qq.com> |
|
Detailed Product Description
| Good For: |
Aerial Working |
HS-Code: |
8705909990 |
| Cell: |
8615271357675 |
Engine Brand:: |
ISUZU Euro5 |
| Color: |
Optional Color /Logo |
Key Parts: |
Working Bucket, Hook, Four Legs, Up And Down Operation, Hydraulic Control |
| Name: |
Road Cleaning Truck ,Street Sweeper Truck |
Max Operation Height:: |
14m,16m.18m |
| Working Platform Rating Loading: |
200kg, |
Working Platform Dimension:: |
1100*570*1000mm |
| High Light: |
truck mounted aerial platform, truck mounted aerial work platform |
ISUZU 14m -16m Aerial Working Platform Truck 360°turning(left or right)
max operation height:14m,
max operation radius:5.7m,
max working platform height:11.5m-16m
working platform rating loading=200kg,
working platform rating allowable passengers=2,
working platform dimension:1100*570*1000mm,
360°turning(left or right),
4 H-shape legs for optional
Description
ISUZU 14m -16m Aerial Working Platform Truck Folding Work Platform
– ISUZU aerial work platform truck has lowest overall height facilitates entering tunnels and underground parking lots.
– Uni-body frame with high stiffness minimizes twist of chassis.
– Digitalization of RPM accelerator results quicker operation.
– Double derrick cylinder gives excellentlifting capacity.
– Double boom slewing hydraulic reductionminimizes boom’s wobble when the boom rotates.
– PLVC system and CAN communication/networkcontrol system enable superior quality of fine movement.
– High end exterior aluminum checker platesare attached on the relevant parts.
– Rubber dampers are installed on the boomrest for the protection of the derrick cylinder.
The Specification of ISUZU 14m -16m Aerial Working Platform Truck Folding Work Platform:
| ITEMS | UNIT | PARAMETER |
| Vehicle model | | DRZ5090JGK Aerial Platform Truck |
| Chassis model | | QL1090 |
| Overall dimensions | mm | 7800×2180×3210 |
| Fact loading | kg | 200 |
| Mass in working order | kg | Appro×4000 |
| Body internal dimensions | mm | / |
| Wheel base | 3360 |
| F/R track base | 1506/1404 |
| Approach/departure angle | ° | 11 /9 |
| Exhaust/kw | ml/kw | 2999/88 |
| Max speed | km/h | 105 |
| Tire specification | 7.00-16 | Engine type | 4KH1-TCG40 |
| Traction system | 4×2 | transmission | MSB 5-speed Manual |
| Number of axles | 2 | Electric system | 24v |
| Operation control system | Electrically hydraulic control | Allowable passengers in cab | 2+3 |
| Equipment | max operation height:14m,
max operation radius:5.7m,
max working platform height:11.5m-16m
working platform rating loading=200kg,
working platform rating allowable passengers=2,
working platform dimension:1100*570*1000mm,
360°turning(left or right),
4 H-shape legs for optional |
| Engine | ISUZU brand diesel engine |
| Production cycle | 15-20 days |
| Warranty | 12 month, from the date of supply |

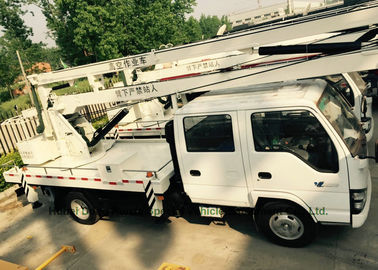

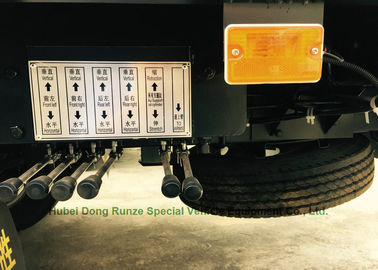

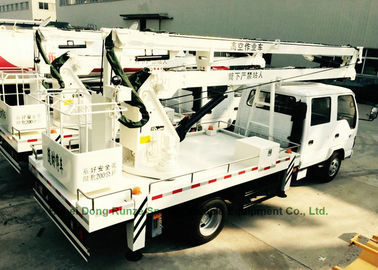

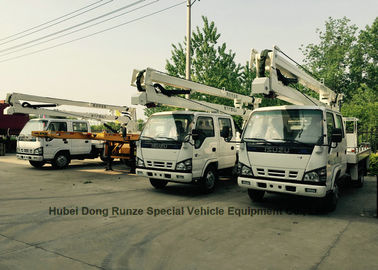

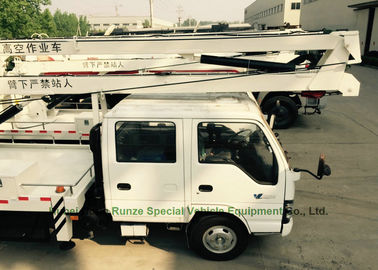

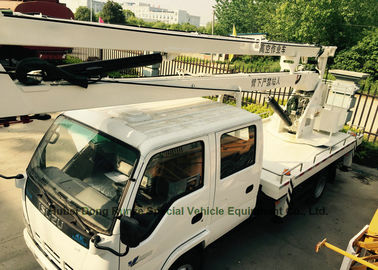

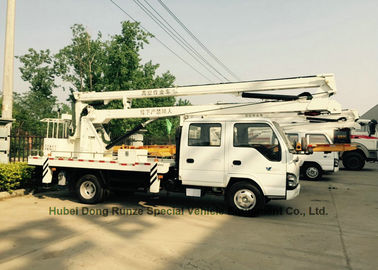

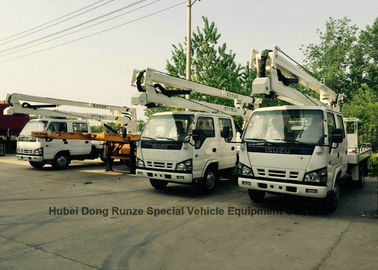

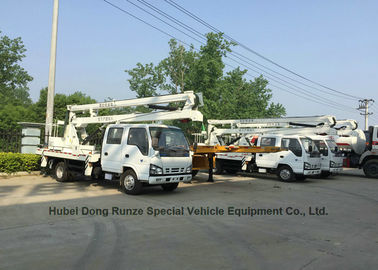

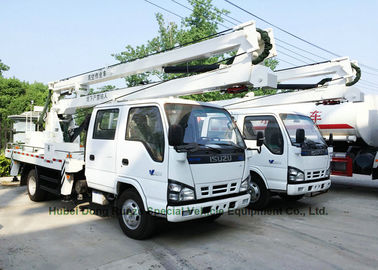

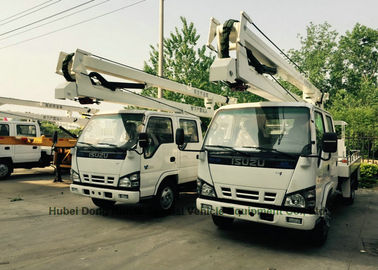

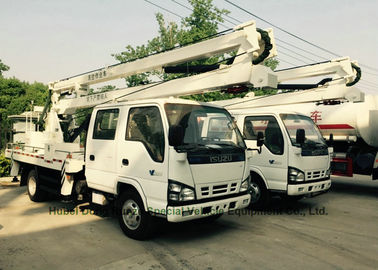

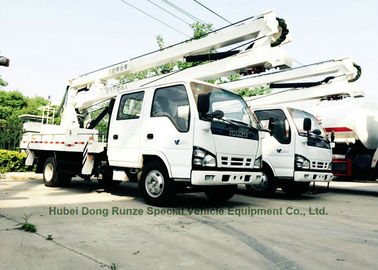

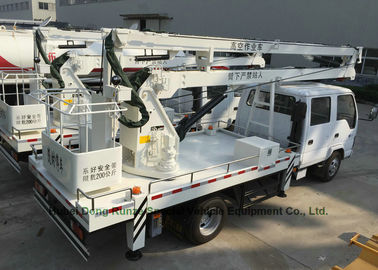

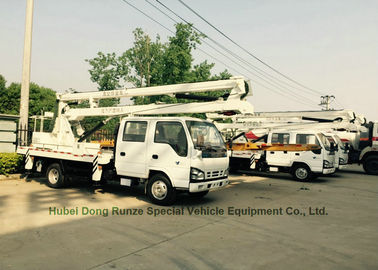

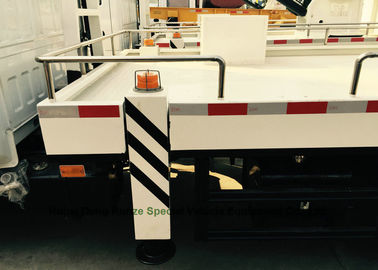

The pictures of ISUZU 14m -16m Aerial Working Platform Truck Folding Work Platform:
Shipment option
CBU terms should be chosen for such tanker shipment. By bulk ship, or RORO car carrier ship. some by Flat /Frame container
applyed Certificate of Origin (Form E) issued by HUBEI ENTRY-EXIT INSPECTION AND QUARANTINE BUREAU for costumer pay 0 import Tax.
