Product Details:
Payment & Shipping Terms:
|
| HS-Code: | 8705309000 | Cell: | 8615271357675 |
|---|---|---|---|
| Cabin: | With A/C | Key Parts: | Fire Pump Fire Fighting Equipment |
| Drive Type: | LHD/RHD | Wheelbase: | 1800+4600+1350mm |
| Capacity: | Water 20000 Foam 4500 | Overall: | 12050*2500*3580 Mm |
| High Light: | rescue fire truck,fire service truck |
||

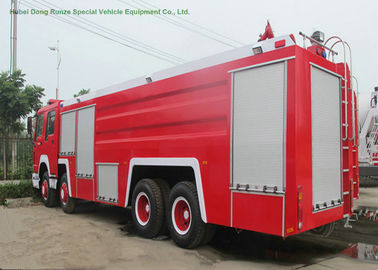

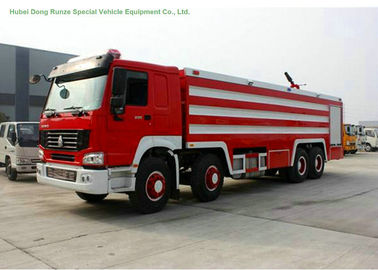

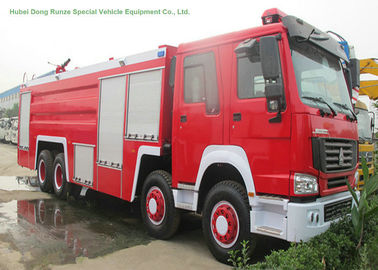

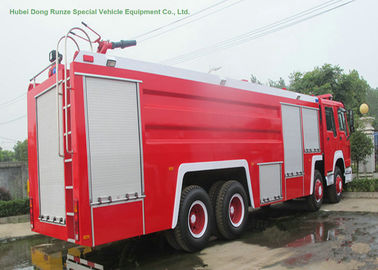

Sinotruk Howo 8x4 Driving type 24000 lityres water tanker fire trucks
Sinotruk HOWO 8x4 Foam Tender Apparatus Fire Fighting Truck
Howo Fire fighing truck mainly equipped:
1. fire fighting truck chassis Sinotruck Howo which constitutes cab, engine, gearbox etc.
2. fire truck upper bodywork with water/foam tank, fire pump,fire monitor,pipe,etc.
3. Some fire pumps are normal pressure pressure, imported from US.A Darley
4. fire monitor is controlled by Manual or Electric.
Water Tank Fire Fighting Truck technical specifications:
Euro 4
| Vehicle Name: | Water tank fire fighting truck (SINOTRUCK HOWO CHASSIS) | |
| Bodywork: | Material: stainless steel and aluminous alloy profile | |
| Chassis: | Brand | SINOTRUCK HOWO |
| Chassis Model | HOWO ZZ5347V4667D5 | |
| Drive Type | 8x4, LHD/RHD | |
| Engine type and power (kw): | D12.42-40/309 | |
| Fire-extinguishing Agents | Water: 23500L | |
| Fire Pump | Type: | Darley PSP1500 |
| Pressure (Mpa): | 1.0 | |
| Rate (L/s): | 90 | |
| Fire Monitor | Type: | PL64 (choose Manual or Electric) |
| Shot Range: | ≥70m | |
| Technical Requirement |
1 All operation switches, gauges, equipment rack and vehicles should have qualified nameplates for identification. 2 The Quality of whole vehicle should meet the standard of GB7956-1998 Requirements and Testing Methods on Performance of Fire Vehicle. 3 The liquid tank should meet requirements in GA39.5-92 of Ministry of Public Security. 4 The appearance of whole vehicle should be smooth and even, in consistence with GA39.5-92. 5 Welding should be firm, smooth and even. |
|
Sinotruck Howo 8X4 420hp fire engine fire fighting truck Euro 5
Technical Parameters
| Cabin | Driving type 8x4 LHD/RHD | |
| Model: ZZ543 | ||
| 2 Persons allowed in driver's cab | ||
| Carriage Dimensions | 12050*2500*3580 mm | |
| Wheel Base | 1800+4600+1350 mm | |
| GVW | 42600kg | |
| Axle loading capacity | 8500/8100/26000 KG | |
| Engine | Brand | SINOTRUK |
| Model | D10.42-40 | |
| Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection | |
| Displacement | 11.596L | |
| Power | 309 kw | |
| Horse Power (HP) | 420 | |
| Emission standard | Euro 5 | |
| Max Speed | 100 km/h | |
| Tire | 12.00-20,12.00R20,315/80R22.5 | |
| Water/Foam Tank Capacity | 20000L / 4550L | |
| Fire Pump Model | CB10/100-TB | |
| Monitor Model | PL64 | |
| Water Pump Flow | 80 L/S | |
| Water Pump Pressure | 1.0 Mpa | |
| Monitor Flow Rate | 64 L/S | |
| Monitor Range | ≥65 m | |
| Water Pumper Inlet Diameter | 1*150 mm | |
| Water Pumper Outlet Diameter | 4*80 mm | |
| Water Tank Inlet Diameter | 4*80 mm | |
| Proportioning Mixer | Integrated | |
HOWO 20 Ton Water tanker fire fighting trucks
| Tank volume | 20000L water tank | Chassis model | ZZ5437V4667E1 |
| Overall dimension(mm) | 11900×2500×3635 | Brand name | Sinotruck Howo |
| Gross weight(Kg) | 41000 | Wheelbase(mm) | 1800+4600+1350 |
| Payload(Kg) | 23550 | Drive type | 8*4 |
| Curb weight(Kg) | 17300 | Fuel type | diesel |
| Axle No. | 4 | Emission standard | Euro 3/Euro 4/Euro 5 |
| Cab seats(person) | 2 | Transmission | 12-speed |
| Approach/departure angle(°) | 14/13 | Tires No. | 12 |
| Axle load (Kg) | 8500/7300/12600/12600 | Tire specification | 12.00-20 |
| Front/rear hang(mm) | 1500/2545 | Max speed(km/h) | 85 |
| Front/Rear track(mm) | 2022/2022,1830/1830 | Steel spring number | 11/11/12 |
| Engine parameters | |||
| Engine model | Engine manufacturer | Displacement (ml) | power(kw) |
| D10.34-50 | China heavy automobile group co. LTD | 9726 | 249 |
| Chassis Description |
1.Sinotruck Howo 8x4 chassis, High roof with two sleeper, with left/right hand drive optional. 2.1800+4600+1350mm wheelbase,340HP heavy automobile Engine.12-speed transmission,front axle 6T/rear axle 10T,12.00-20 tire. 3.Steam brake and Power steering. |
||
| Standard Equipment |
1.Tank valume:20000L water tank,red,Material:high quality carbon steel plate and stainless steel plate, 3.Fire fighting truck with double row structure,good vision,can take six to eight people.Fire truck can fight fire on the way,shooting range is far,fire fighting capacity is strong. 4.Compartments book door is made of high quality aluminum alloy design and production, equipment, opening and closing flexible, low noise, good sealing, good appearance. 5.Pump room set up water pump system, various kinds of instrument, indicator light, gauge, pressure gauge, vacuum gauge, etc. |
||
| Optional Equipment |
We can make the fire fighting truck according to customer's requests with the optional equipments below: 1. Fire pumps: middle pressure pump, low pressure pump, high pressure pump, ordinary pressure pump,medium and low pressure fire pump, high and low pressure fire pump and etc. 2. All kinds of fire fighting equipment. Please advise us in advance if you have any special requests for the fire fighting truck, we can equip various kinds optional equipments for you. |
||
| Purposes | Fire truck is also called fire fighting truck,fire extinguishing trucks and fire engines.It is widely used in urban public security fire brigades,petrochemical industry,factories and mines enterprises,forest,port,wharf and other departments,it can quickly close to fire scene and fight all kinds of fires, wihch is the ideal of fire-fighting equipment.Rescue fire truck has a large carrying capacity and emergency rescue purposes,it can be widely used in transportation of material and personnel in the field of disaster relief,forest fire,geological exploration and etc. | ||
| Product advantage |
1.Fire fighting truck streamline design,novel appearance,flexible,economical and practical,internal equipment rack separate materials are made of high strength aluminum alloy profiles,the beauty is generous.All kinds of equipment placed reasonable and fixed with special fixtures. 2. Best Quality with competitive price. |
||
CBU terms should be chosen for such tanker shipment. By bulk ship, or RORO car carrier ship. some by Flat /Frame container
OUR SERVICES
(1) More than 500 workers, large and advanced production;
(2) 25 professional engineers, can offer the best and cheapest design;
(3) Build strict QC team to guarantee the quality;
(4) 1 year or 30,000km warranty which comes first.
(5) One set of spare parts of chassis provided which will help you save money on maintenance.
(6) Provide technical support and after serive for life.
(7) Professional sales team which will help you to choose suitable truck.
FAQ
Why choose us?
Experience
10 years experience of production,sales,research and development in the field of special trucks.
Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.
Good quality
Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.
Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.
Production supply capacity
Company scale
More than 3000 employees with 1000 acres factory, total asset 2 billion.
We manufacture the truck as soon as possible once your order confirmed.And for the stock, we can delivery it immediately.
Contact us
Flat-head all-metal enclosed cab, panoramic curved windshield.New front face mask, front bumper, former combination light, car doors and Windows, front cover face mask.
High quality carbon steel material, welded structure, internal vertical, horizontal anti-swing board, high-tech anti-corrosion treatment.Stainless steel material can be used.
Number of Tires:12
Tire Specification:12.00-20
Front Wheel Track:2022/2022(mm)
Rear Wheel Track:1830/1830(mm)
Engine Horsepower:249kw
Emissions(ml):9726
Fuel Type:diesel
Emission standards:EUR III
