HOWO Camping Truck 20 - 28 Staff With Sleep Bed , Extendable Sleeping Room

Large Image : HOWO Camping Truck 20 - 28 Staff With Sleep Bed , Extendable Sleeping Room

Product Details:

Place of Origin:	Hubei ,China
Brand Name:	Dong Run Ze
Certification:	C3
Model Number:	DRZ5

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit Call /WhatsApp:+8615271357675
Price:	Negotiated at Weichat:King253725877
Packaging Details:	Some Body Part By containers , Truck by Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck, we will spray antirust paint with free. please emial to <sale@tictrucks.com>
Delivery Time:	25 working days
Payment Terms:	TT emial to <253725877@qq.com>
Supply Ability:	Ask us for Better Price <253725877@qq.com>

Contact Now

Detailed Product Description

HS-Code:

8705904000

Keywords:

HOWO Camping Truck ,Camping Car

Wheel Base:

4025+1350, 4000+1400,.

Dimensions:

10900×2550×4000

Highlight:

mobile generator truck

mobile workshop vans

SINOTRUCK HOWO Camping Truck For Camping Outdoors 20 - 28 Staff With Sleep Bed ,Extendable Van Sleeping Room

1. Office area Equipment Configuration

Serial number device name Model quantity Note

1 conference Table Homemade One

2 32"LCD TV 1 units

3 High-grade single seat 4

40 percent folding single seat 6

5 Air Conditioner 2 units 1. 5 horses.

6 Hanging Cabinet 1 sets

7 File Cabinet One

8 Lights 2

9 Top Fan One

10 Emergency Lights 1

UPS 1 Sets

12 power supply, telephone, network socket and interface to be determined to connect as required

13 Curtains 4 Sets

2. Accommodation Area Configuration

Serial number device name Model quantity Note

1 upper and lower deck soft sleeper homemade 5 sets are decorated with wooden wrapping edge

2 bedside lamp 10 Adjustable light

3 Caps Hook 10

40 percent stacked set of 10

5 Ceiling Fan 1 sets

6 Double Sinks 1 Sets

7 Electric Water Heater 1 sets

8 Mattress 10 Sets of mat

9 Toilet Fan 1 sets

10 Lights 3 Sets

11 Emergency Light 1 sets

12 Socket 10 Sets

13 Curtains 11 Sets

3. Chassis Platform Configuration

Serial number device name Model quantity Note

1 Car Chassis Customer selected 1 units

2 Generator Set 1 sets 5-kilowatt

3 external Air conditioner 1 1 units

4 external Air Conditioner 2 1 units

5 Tools with Tarpaulin box 1

6 Tank and Awning box 1

7 Distribution Box 1 wire cable with mains connection

8 Tank pending Total 500 litres

4. Compartment configuration

Serial number device name Model quantity Note

1 roof Beidou antenna base 1

2 various lines and pipelines 1 sets

3 Side Pull Ladder 1 sets

4 Push-type movable window (large) 914x565 4 office area

5 Push-type movable window (small) 500x350 11 accommodation Area

6 Car Door 1 office area

7 sideslip Door 1 accommodation Area

8 Compartment Side Ladder 1 sets

9 Roof Guard 1 Sets

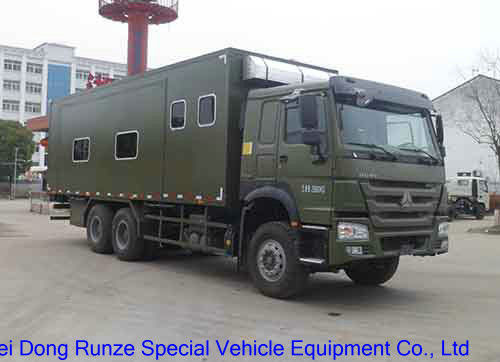

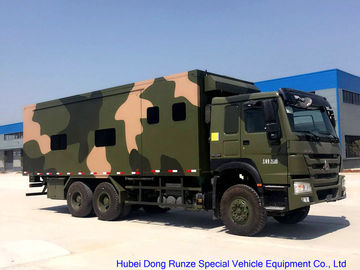

Truck Photo show:

Chassis:	ZZ1257N4347E1	Fuel type:	diesel fuel
Engine:	D10.34-50; D10.38-50;...	Rated capacity (kg):	8720
Displacement (cc):	9726; 9726; 9726; 9726	Wheelbase (mm):	4025+1350, 4000+1400,...
Power (kW):	249; 276; 206; 228	Dimensions (mm):	10410 × 2500 × 3990

Technical specifications

#	Engine model	Engine displacement			Engine power		Engine manufacturer
1	D10.34-50	9 726 cc	9.7 L	594 cu in	249 kW	339 hp	China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
2	D10.38-50	9 726 cc	9.7 L	594 cu in	276 kW	375 hp	China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
3	D10.28-50	9 726 cc	9.7 L	594 cu in	206 kW	280 hp	China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
4	D10.31-50	9 726 cc	9.7 L	594 cu in	228 kW	310 hp	China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)

Performance
Fuel	diesel fuel
Environmental standard	Euro 5,
Maximum speed	80 km/h	50 mph
ABS	have

Capacity
Rated load capacity	8720 kg	8.7 t		19,224 lbs

Weights and Ground pressure
Curb weight	16150 kg	16.2 t	35,605 lbs
Gross vehicle weight rating	25000 kg	25 t	55,000 lbs
Axle load distribution	7000 kg / 18000 kg (tandem axle) 7 t / 18 t (tandem axle) 15,000 lbs / 40,000 lbs (tandem axle)

Dimensions
Overall length	10410 mm	34′2″
Overall width	2500 mm	8′3″
Overall height	3990 mm	13′2″

Undercarriage and Suspension
Number of axles	3
Wheelbase	4025+1350 mm, 4000+1400 mm, 4325+1350 mm, 4300+1400 mm, 4600+1350 mm, 4575+1400 mm	13′3″+4′6″, 13′2″+4′8″, 14′3″+4′6″, 14′2″+4′8″, 15′2″+4′6″, 15′1″+4′8″
Front track	2022 mm, 2041 mm	6′8″, 6′9″
Rear track	1830 mm / 1830 mm	6′1″ / 6′1″
Front overhang	1500 mm	5′0″
Rear overhang	3235 mm	10′8″
Angle of approach	16°
Angle of departure	16°
Leaf springs	9 / 12, 9 / -
