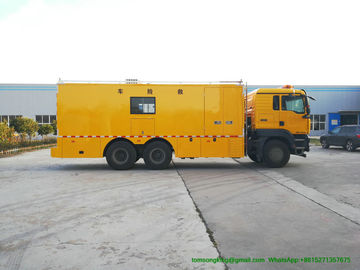

SITRAK Emergency Accident Rescue Vehicles On-site rescue and repair of various accidents

SITRAK Emergency Accident Rescue Vehicles of Fuel Supply, Water Supply, Municipal Administration, Electric Power

SITRAK Emergency Accident Rescue Vehicles of Fuel Supply, Water Supply, Municipal Administration, Electric Power

Features and functions
1. Scope of application
This product is the only new type of rescue vehicle in China that is specially developed for gas, heat, water supply, municipal, electric power, fire protection, flood control, earthquake relief, highway and other units.
◆ On-site rescue and repair of various accidents;
◆ Pressure plugging and on-site repair of petrochemical equipment and long-distance oil and gas pipelines;
◆ Repair of oilfield pumping station and pipeline;
◆ Repair of the city's water supply pipe network;
◆ repair of power supply lines;
◆Repair of gas pipelines;
◆ repair of telecommunications lines;
◆Repair of the field signal transfer station of mobile communication;
◆ repair of highways;
◆ repair of the railway;
◆ Coordination work at the fire site;
◆ On-site repair of military equipment;
◆ Natural disaster scene accident rescue.
The car can also be used as a mobile repair shop (workstation) to fix necessary tools and equipment for processing and repairing parts on site.
2. Functions that can be realized after modification
1) Integrated rescue equipment tool transportation function

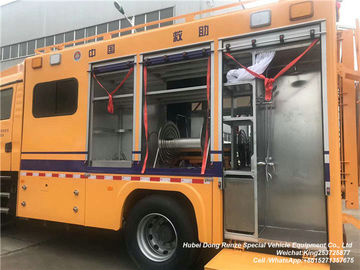

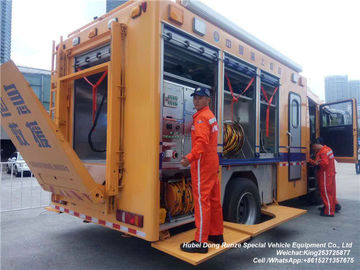

The equipment cabinet adopts aluminum alloy profiles imported from Germany, which can be adjusted according to the size of the equipment. The equipment on both sides of the equipment is fixed according to the structure of various vehicle equipments. All equipments have locking and fixing devices;
2) Rescue function
A variety of rescue tools are equipped in the car to provide emergency rescue while providing temporary heating.
3) Power supply function
The addition of a separate Cummins 50KW generator set provides 380V and 220v power supplies;
4) Omnidirectional illumination
The vehicle is equipped with 2 sets of lifting and lighting systems, one of which is a lifting and lighting camera system, the lamp head can be raised by 2.4 meters, 360° rotating head,
A set of mast lift lighting provides illumination.
5) Vehicle balance
The hydraulic support leg system is configured to keep the vehicle balanced and stable when using the vehicle.
6) Warning light warning
The top of the front of the car is equipped with a long row of warning lights, an alarm, and a flash module on the side to act as a warning.
7) Security function
The system has safety technology such as lightning protection, fire prevention and electricity consumption.
Body configuration grounding, lightning protection, equipped with 2 bottles of dry ice fire extinguisher to ensure vehicle safety
Configure emergency medical kit to provide self-rescue function for emergency personnel
8) Comprehensive control of electrical appliances
All electrical equipment control systems of the vehicle are concentrated in the side console of the vehicle, and all electrical appliances are controlled through the integrated electrical control panel.
Another configuration heating intelligent control system
9) Network data transmission function
Configure hard disk recorders and wireless networks for on-site monitoring, data transmission, images, etc.

GB17691-2005 National

SITRAK Emergency Accident Rescue Vehicles

SITRAK Emergency Rescue Truck

technical parameters
Dimensions: 11940 × 2550 × 3950 (mm) Cargo size: × × (mm)
Total mass: 25000 (Kg) Mass utilization factor:
Curing quality: 24805, 24870 (Kg) Rated load mass: (Kg)
Rated passenger: (person) anti-lock system:
Approach angle / departure angle: 19/11 (°) Front suspension / rear suspension: 1475/2515 (mm)
Fuel type: Diesel Emission standard: China five
Axle load: 5000/5500/14500 (two-axis group) Wheelbase: 1950+3825+1350, 1950+3800+1400, 1950+4625+1350, 1950+4600+1400(mm)
Number of axles: 4 Maximum speed: 101 (km / h)
Number of tires: 12 (pieces) Tire specifications: 11.00R20,12.00R20 16PR,12R22.5,295/80R22.5,315/80R22.5 18PR/315/80R22.5 16PR
Fuel consumption: (L/100Km) Number of springs: 4/4/5, 4/4/12, 11/11/12
Front track: 2022/2022,2041/2041 (mm) Rear track: 1830/1830 (mm)
Before braking: After braking:
Before the exercise: After the exercise:
Steering form: Steering wheel Start mode:
ZZ1316V466HE1
Fuel type: Diesel According to the standard: GB17691-2005 country V, GB3847-2005
Chassis emission standards:
other
1 The top of the car body is closed and cannot be opened. 2The special devices mainly include: flip sleeper, TV, air conditioner, etc. 3. The car side guard and the rear lower guard are a skirt type structure, and the side protection is 460mm from the ground. The height of the protection ground is 500mm. 4. Only the 1950+4600+1400 wheelbase 5.ABS system model is 4460046300. The manufacturer is WABCO Automotive Control System (China) Co., Ltd.
