Military Police Outdoor Camping Vehicle for Outdoor Mobile Camping Truck With Living Room lodging van

Large Image : Military Police Outdoor Camping Vehicle for Outdoor Mobile Camping Truck With Living Room lodging van

Product Details:

Place of Origin:	Hubei ,China
Brand Name:	Dong Run Ze
Certification:	C3
Model Number:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit Call /WhatsApp:+8615271357675
Price:	Negotiated at Weichat:King253725877
Packaging Details:	Some Body Part By containers , Truck by Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck, we will spray antirust paint with free. please emial to <sale@tictrucks.com>
Delivery Time:	25 working days
Payment Terms:	TT emial to <253725877@qq.com>
Supply Ability:	Ask us for Better Price <253725877@qq.com>

Contact Now

Detailed Product Description

HS-Code:	8705909990	Keywords:	Mobile Kitchen, Camping Dining Outdoors
Utensils:	Camping Dining Living Outdoors	Fuel Type:	Diesel
Dimensions:	1182524903650mm	Cabinet Size:	896524302150mm/Customised

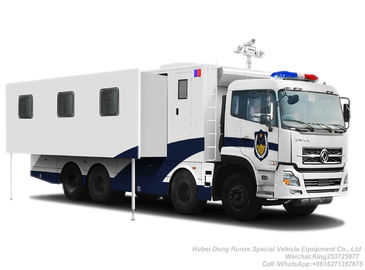

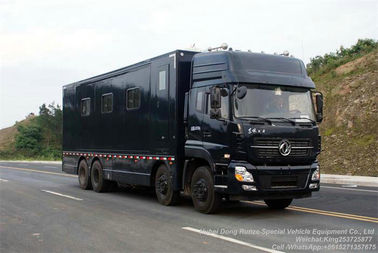

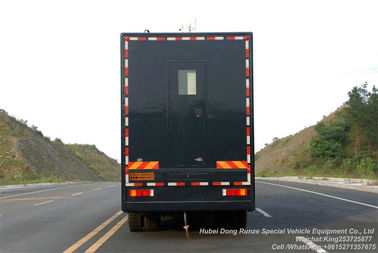

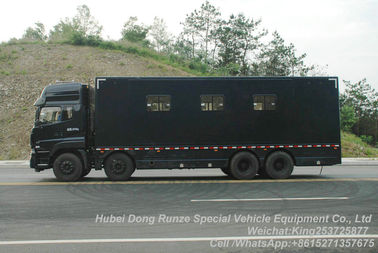

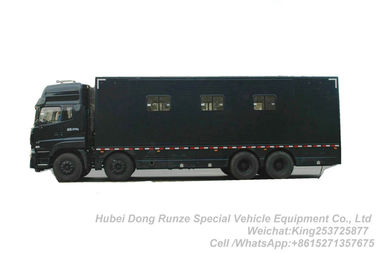

Military Police Outdoor Camping Vehicle for Outdoor Mobile Camping Truck With Living Room lodging van

Military Police Outdoor Camping Vehicle for 24 People Customizing

Military Outdoor Camping Vehicle Customizing
lodging van; dormitory car; living van

Price: $ 133000.00

Discount Price: $ 128000.00

Outdoor Camping Vehicle Customizing

Mobile Camping van -00- Mobile Camping van -01-_1

Camping car main technical parameters
Dimensions: 11750 × 2540 × 3995 (mm) Cargo size: × × (mm)
Total mass: 28750 (Kg) Mass utilization factor:
Curing quality: 28620, 28555 (Kg)
Cab: Front passengers: 2, 3 (person)
Rated passenger: (person) anti-lock system: Yes
Approach angle / departure angle: 22/13 (°) Front suspension / rear suspension: 1500/2450 (mm)
Axle load: 5575/5575/17600 (two-axis group) Wheelbase: 1850+4600+1350, 1850+4600+1400, 2050+4400+1350, 2050+4400+1400(mm)
Number of axles: 4 Maximum speed: 90 (km / h)
Fuel consumption: Number of springs: 9/9/10, 8/8/10, 3/3/4, 9/9/-, 3/3/-, 3/3/10, 2/2/10, 2/ 2/4
Number of tires: 12 Tire specifications: 11.00-20 16PR, 11.00-20 18PR, 11.00R20 16PR, 11.00R20 18PR, 295/80R22.5 16PR, 295/80R22.5 18PR, 12R22.5 16PR, 12R22.5 18PR
Front track: 2040/2040 Rear track: 1860/1860
Before braking: After braking:
Before the exercise: After the exercise:
Steering form: Steering wheel Start mode:
Transmission type: fuel consumption (L/100Km):
Vin vehicle identification code: LGAX5D65××××××××× laws and regulations
Engine parameters
Engine engine manufacturer displacement (ml) power (kw)
ISL9.5-292E51A
ISL9.5-315E51A
ISL9.5-340E51A
ISL9.5-360E51A
dCi350-51
dCi385-51
dCi420-51
DDi75S315-50
DDi75S350-50 Dongfeng Cummins Engine Co., Ltd.
Dongfeng Cummins Engine Co., Ltd.
Dongfeng Cummins Engine Co., Ltd.
Dongfeng Cummins Engine Co., Ltd.
Dongfeng Commercial Vehicle Co., Ltd.
Dongfeng Commercial Vehicle Co., Ltd.
Dongfeng Commercial Vehicle Co., Ltd.
Dongfeng Commercial Vehicle Co., Ltd.
Dongfeng Commercial Vehicle Co., Ltd. 9460

Off Road 4x4 Shower Vehicle Customizing $87000.00	King Run Logistics Shower Vehicle Customizing $87000.00
Drought Relief Flood Control And Drainage Pump Truck $98000.00	LPG Bobtail Truck 12000L RHD/LHD $38000.00
Dongfeng 20m Telescopic Aerial Platform Truck EURO 5 $48000.00	DONGFENG KING RUN 22-24M OVERHEAD WORKING TRUCK $45000.00
Aerial platform truck 16m with water tank and water pump Customising $27000.00	Dongfeng 16m Telescopic Aerial Platform Truck $22000.00
Dongfeng 20-24m Aerial Platform Truck $42000.00	20000L Water Wagon DongFeng for sale Euro 4,5 $42000.00
30000L 270HP Water Truck 8x4 for sale $38100.00	12000L 190HP Water Tanker Truck for Sale $22000.00
DFAC Aluminium Alloy Oil Tank Truck 28000 - 30000L (8000 Gallons) $71000.00	D7 Refuelling Fuel Truck With PTO Oil Pump 20000L ( 5280 Gallons) $41500.00

Vehicle fuel parameter

Model	DFH1310A1
Brand Name	Dongfeng
Chassis	DFH1310A1

Manufacturer Profile

Manufacturer	Dongfeng Commercial Vehicle Co., Ltd.
Brand	Dongfeng
Type of manufacturer	Commercial vehicle manufacturer
City	Wuhan
Province (Region)	Hubei Province
Country	China
Number of vehicles*	982 models (3664 items total)
* A number of models manufactured by Dongfeng Commercial Vehicle Co., Ltd. found in Auto-che.com vehicle database

Technical specifications

#	Engine model	Engine displacement	Engine power	Engine manufacturer
1	ISL9.5-292E51A	9460 cc	9.5 L	577 cuin	215 kW	292 hp	Dongfeng Cummins Engine Co., Ltd.
2	ISL9.5-315E51A	9460 cc	9.5 L	577 cuin	232 kW	315 hp	Dongfeng Cummins Engine Co., Ltd.
3	ISL9.5-340E51A	9460 cc	9.5 L	577 cuin	251 kW	341 hp	Dongfeng Cummins Engine Co., Ltd.
4	ISL9.5-360E51A	9460 cc	9.5 L	577 cuin	268 kW	364 hp	Dongfeng Cummins Engine Co., Ltd.
5	dCi350-51	11120 cc	11.1 L	679 cuin	257 kW	349 hp	Dongfeng Commercial Vehicle Co., Ltd.
6	dCi385-51	11120 cc	11.1 L	679 cuin	283 kW	385 hp	Dongfeng Commercial Vehicle Co., Ltd.
7	dCi420-51	11120 cc	11.1 L	679 cuin	309 kW	420 hp	Dongfeng Commercial Vehicle Co., Ltd.
8	DDi75S315-50	7530 cc	7.5 L	460 cuin	232 kW	315 hp	Dongfeng Commercial Vehicle Co., Ltd.
9	DDi75S350-50	7530 cc	7.5 L	460 cuin	257 kW	349 hp	Dongfeng Commercial Vehicle Co., Ltd.

Performance
Fuel	diesel fuel
Environmental standard	GB17691-2005 National V / Euro 5, GB3847-2005
Maximum speed	90 km/h	56 mph
ABS	have

Capacity
Rated load capacity	18170 kg, 18105 kg	18.2 t, 18.1 t	40,058 lbs, 39,915 lbs
Quasi-total mass of trailer	18000 kg	18 t	40,000 lbs
Load factor (the ratio of the payload of a vehicle to its weight)	1.44

Weights and Ground pressure
Curb weight	12700 kg	12.7 t	28,000 lbs
Gross vehicle weight rating	31000 kg	31 t	68,000 lbs
Axle load distribution	6500 kg / 6500 kg / 18000 kg () 6.5 t / 6.5 t / 18 t () 14,300 lbs / 14,300 lbs / 40,000 lbs ()

Dimensions
Overall length	11980 mm	39′4″
Overall width	2500 mm / 2550 mm	8′3″ / 8′5″
Overall height	3200 mm / 3870 mm	10′6″ / 12′9″

Cargo body
Cargo body length	9400 mm / 9600 mm	30′11″ / 31′6″
Cargo body width	600 mm / 800 mm	2′0″ / 2′8″
Cargo body height	2300 mm / 2400 mm / 2450 mm	7′7″ / 7′11″ / 8′1″

Undercarriage and Suspension
Number of axles	4
Wheelbase	1850+4600+1350 mm, 1850+4600+1400 mm, 2050+4400+1350 mm, 2050+4400+1400 mm	6′1″+15′2″+4′6″, 6′1″+15′2″+4′8″, 6′9″+14′6″+4′6″, 6′9″+14′6″+4′8″
Front track	2040 mm / 2040 mm	6′9″ / 6′9″
Rear track	1860 mm / 1860 mm	6′2″ / 6′2″
Front/rear overhang	1500 mm / 2680 mm, 1500 mm / 2630 mm	5′0″ / 8′10″, 5′0″ / 8′8″
Angle of approach	22°
Angle of departure	9°
Leaf springs	9 / 9 / 10, 8 / 8 / 10, 3 / 3 / 4, 9 / 9 / -, 3 / 3 / -

Tyres and Wheels
Number of tyres	12
Tyres dimension	11.00-20, 11.00R20, 295/80R22.5, 12R22.5

Miscellaneous
Seating capacity	2, 3
Steering control	steering wheel

Fuel type: Diesel According to the standard:
Chassis emission standards:
Other
1. The body can be sprayed or pasted with promotional text, logo. 2. Special equipment: camping bed, air conditioning, TV, etc.; 3 The side protection and rear protection of the vehicle is a skirt structure, and the lowermost height of the rear protection is 530mm from the ground. Optional without overhead air conditioning and lodging lights; 5. ABS manufacturer: East Cochnoll Commercial Vehicle Brake System (Shiyan) Co., Ltd., model: 3631010-C2000; engine net power is 226KW.

Camping car construction plan (vehicle)

In order to cope with various rescue and rescue missions such as rescue and disaster relief, handling emergencies, and quickly build a camping base after various accidents and natural disasters, reduce the unnecessary physical loss of emergency rescuers and ensure the emergency rest of emergency rescue personnel in the disaster area. The environment, adequate rest time and physical recovery will improve the efficiency of rescue and rescue.

(1) Construction content (see the camping car configuration table for details)

Construction 2 sets of advanced technology, flexible and flexible, full-featured, efficient and practical, comfortable and convenient, safe, stable and reliable. A camping car that can meet the needs of 24-30 emergency rescue personnel in the disaster area.

The vehicle is equipped with dual power supply (generator, mains) automatic switching power supply system, folding bed and mattress, mains inverter air conditioner, fuel independent plumbing heating equipment, high-power silent generator, hydraulic pump used for expansion of the cabinet, etc. .

(2) System function 1, vehicle function

The vehicle is maneuverable, flexible, fast and convenient to operate; the sealing effect is good, the use is quick and convenient, and the service life is long; the whole vehicle has good strength and high reliability; and the dual power supply configuration satisfies the power supply requirement. The top of the cab is equipped with long-row warning lights, and strobe lights on both sides and rear of the car to improve the safety of the vehicle.

Vehicle modifications do not alter key structures such as the engine, transmission, braking, travel and steering systems of the original chassis:

Chassis modification

A sub-frame is installed on the original frame, and a car body is mounted on the sub-frame;

A reversing camera is installed at the rear of the car body, and a reversing monitoring screen is installed in the cab;

A taillight is installed in the lower part of the rear panel of the car body, and a license plate frame is installed in the middle and a license plate lamp is installed;

Process requirements

The cab is all decorated with the original car to maintain the original car's aesthetics.

The interior wiring is hidden in the interior according to the body structure.

The parts and components used on the mechanical structural members are considered to have sufficient strength and rigidity to ensure that they will not move, fall, break and deform under normal use and fault conditions.

The power cord is connected to the in-vehicle equipment by a centralized outlet for waterproofing.

The pins and sockets of various cable plugs are coated with electric contact protector DJB-823 to ensure electrical contact stability.

Box design

The camping car uses the second type truck chassis, which integrates the main equipment such as car body, car air conditioner, generator, power supply and distribution system on the original car chassis; the whole vehicle is rationally arranged according to the operation and use conditions, and the one-side pull-in cabin expands to a depth of 1 meter. The important equipments are fixed and reliable, so as to ensure the firmness and reliability in the driving process; the portable devices are convenient and practical to be stored, and are firmly and reliably fixed in the vehicle; the interior and exterior of the vehicle are beautifully decorated; and the rapid maneuvering work during the attendance task is satisfied. At the same time, it has a good rest environment, which makes it have good operability in the layout and structure design of the whole vehicle.

The installation position of the external equipment of the vehicle is coordinated with the vehicle as a whole, and the painting of the appearance color and the body pattern text is strictly in accordance with the requirements of the user.

2, camping function

The layout of the bed is reasonable and the mattress is made of wear-resistant, dirt-resistant and comfortable. The paving speed is fast, the camping is comfortable, and the access is convenient; the camping environment of the rest area is warm and comfortable.

3, equipment features

Equipped with heating and cooling inverter air conditioner, fuel independent heating and heating equipment, high-power silent generator, hydraulic pump station, auxiliary fuel tank, vehicle-specific water dispenser, utility power and vehicle power generation dual-purpose power supply and socket;

4, communication function

The cab is equipped with a digital-mode car intercom and walkie-talkie, which is compatible with the provincial bureau and found to have intercom equipment. 5, life function

The centralized charging port can meet the charging requirements of communication, lighting and other equipment of the rated campers and other equipment needed for life.

(3) Camping car configuration table

Technical Parameters

(1) Complete vehicle

1 chassis

1. chassis: Drive mode: 8*4

2. #Dimensions: length ≥ 11600mm, width ≥ 2490mm, height ≥ 3600mm

3. The total weight allowed for the whole vehicle: ≥32000kg;

4. # Wheelbase: ≥1950+4600+1400(mm)

★Rated power: ≥390KW

Driving style: Driving on the left side of the steering wheel 7. Front suspension / rear suspension: 1475/2245 mm 8. Approaching departure angle: 19/21°

Maximum speed: ≥100km/h

Fuel: diesel

#Box body damping method: airbag damping

Transmission and hydraulic retarder: (using world famous brands), integrated design, full synchronizer, braking efficiency ≥500KW

Displacement: 12 liters or more

Number of passengers on board: ≥2 people

System standard configuration: ABS, bumper, clutch, steering gear, brake system, tires, cold start system, etc. are the original vehicle configuration.

A shroud is installed on the top of the cab. The shroud is shaped like a roof, and a long row of warning lights is arranged above it. Two sets of warning lights are arranged on the left and right sides of the box.

#Provide the technical specification of the chassis with the official seal of the manufacturer (color screenshot, color scan, color copy invalid).

(2) The box body is equipped with an extension box at the rear of the cab.

2 1. Length ≥ 9000mm, width ≤ 2550mm, height ≤ 3400mm

2. Expansion box: length ≥ 7000; side pull depth ≥ 1000; high ≥ 1950m

3. ★ camping ability (person): ≥24 people

Box structure: steel skeleton, externally applied aluminum skin, heat insulation and noise reduction, six glass windows, one double door, one single door, aluminum alloy ladder, hidden drawing ladder, drawing platform, guardrail, quantity and shop Luggage box, electric rain curtain, electric extended backup manual operation; four-point electric folding hydraulic support, single point support force ≥16 tons, DC12V, automatic horizontal adjustment balance; no less than 8 lighting windows on the left and right sides of the car; The side is a skirt compartment for installing generators, hydraulic pumping stations, accessory batteries, cable trays, auxiliary fuel tanks, etc.; the top of the car is equipped with a satellite antenna, a ventilation fan sunroof, etc.; the front of the cabinet is higher than the top of the cab according to the vehicle. Air conditioning and stainless steel ladders, rear doors and stainless steel ladders are provided at the rear of the car, and a pull-out body is provided for access to the cabin.

All metal parts of the vehicle should be treated with anti-rust treatment. The car body strengthens the skeleton and the embedded plate for phosphating treatment. The exposed paint parts are treated with electrophoretic primer. The car body surface is made of automotive special paint. OEM exterior pattern is required according to requirements. Rust paint.

According to the requirements of the OEM exterior pattern, the chassis anti-rust paint.

Car body insulation layer: B1 grade rubber and plastic insulation material.

Skirt door: aluminum alloy structure

Choose the right space to install the garment cabinet and equipment cabinet.

Install appropriate emergency exit indicators and signs in accordance with relevant standards.

Odor decomposer (1 set): Working noise: ≤24dB; Efficacy: can effectively remove indoor smoke, mold and other odors

(3) Decoration (to meet fire safety standards)

3 four weeks, top: aluminum composite panel

Lighting and Ambient Lights: A certain number of lighting devices are placed on the top and sides of the cabinet.

Floor: wooden floor

(4) Bed (meeting safety, fire, environmental protection and sanitary standards)

4 Folding bed: The bunk bed is foldable, made of aluminum alloy, the bed frame is integrated with the bed board, and the lower side is equipped with lockers. Each of the four beds is separated by a partition and the front has a curtain.

Mattress: Folding mat,

Quilt: Each bed is equipped with military medical quilts, cotton jackets, pillows, white quilt covers, sheets and pillows. The size of the rafters is the same as the bed.

(5) Bathroom

5 Set according to the high-speed rail bathroom standard, equipped with stainless steel odor-free flush toilet, intelligent toilet cover and ventilation system, no water, no sewage, ensure easy cleaning, no odor for 24 hours.

With one-time intelligent thermostatic seat

Automatic packaging for storing feces, automatic replacement of plastic bags, automatic replacement of disposable covers

Inductive automatic control

Fully enclosed manure recovery

Replace the packaging bag and storage box ≥ 30 times in a row

It adopts all-metal movement and digital control circuit. The outer casing is made of FRP, the outer surface is painted with car, and the upper cover is made of ABS plastic with chrome hinge. It is beautiful, high-grade and durable.

Set the water tank and sink. Packed with disposable bags and disposable cushions and high quality toilet paper for more than 1000 times.

(6) Power supply system

6 ★ Generator: water-cooled ultra-quiet diesel generator, rated output power ≥10KW, output rated voltage (V): 230V HP1, output rated frequency (Hz): 50, VCS voltage regulation technology, output voltage AC220V±3V, noise : full load (dB) 7m / 3m / 1m ≤ 55 / 65 / 69,

UPS backup battery (10 pieces): DC 12V/38AH

Charging inverter machine: rated power 3KW; input: AC220V, DC12V; output: AC220V; charging: 12V/24V adaptive intelligent charging, maximum charging current 30A;

Service battery: DC12V lithium battery pack ≥100AH

Cable tray: manual cable reel, 45 m YC3*10mm2 rubber cable

Distribution system (1 set): The switchboard has voltage and current display with leakage protection switch, dual power switch, etc., external power supply waterproof plug and socket; switch controls air conditioner, equipment power, maintenance, lighting, etc.; switchboard panel is CNC machine tool processing, surface spray treatment.

(7) Equipment

7 Car air conditioner: wall-mounted air conditioner, cold and warm inverter air conditioner 2P

Fuel independent heating and heating equipment: Specifications: rated heat capacity (kW): ≥ 7.0, voltage (V): 24, power consumption (W): ≤ 60, fuel consumption (kg / h): ≤ 1, hot air displacement ( M3/h): ≥ 460, single machine mass (kg): ≤ 208,

Ventilation sunroof: ventilation system / escape sunroof with ventilation fan to meet ventilation requirements in the cabin

CO alarm: CO alarm installed in the car, accuracy 1ppm, alarm when the carbon monoxide content exceeds 24ppm

Satellite TV: The display size is not less than 60 inches, and it can quickly find stars to watch TV.

In-vehicle lighting system: LED lighting, integrated with the roof; one LED lighting for each bed position.

Emergency lighting: It can meet the requirements of lighting for personnel in emergency power outage, and the lighting time is not less than 1 hour.

Drinking fountain: car-specific ice hot water dispenser, water bucket.

Beidou satellite navigation vehicle terminal (1 unit) has RDSS positioning function, positioning accuracy of 20 meters (1σ, marked school station area); with RDSS communication function, single communication capability up to 40 Chinese characters (determined by user card level); RNSS/GPS dual-mode positioning function; with Chinese characters, code and Chinese character code mixed transmission and other three text transmission methods; navigation map: Baidu, Gaode map navigation. Reversing the rear view image.

Tiantong satellite phone (1 set) has Tiantong satellite voice function; has two-line telephone interface, can be connected to ordinary telephone landline; satellite module and antenna integrated design; voice: 1.2kbps/2.4kbps/4kbps; power supply: DC9-36V power supply , can be connected to 220V/110V power adapter; protection grade: IP66; working temperature: -20 °C-55 °C; antenna size: diameter ≤ 130mm × height 120mm.

Driving recorder (1 set): 1080P full HD, full coverage of three lanes, fatigue driving reminder; screen size: ≥ 2.0 inches; shooting angle: 120°-149°; with 32G card, recordable and saved for >6 hours video at 1080P

Socket: Integrated socket, which can meet the charging of personnel communication equipment and lighting equipment, rated power is not less than 3KW; each bed position is set to 220v two-hole socket.

Skirt cabin: reserved cabin door at the lower part of the body for installation of generators and on-board equipment

Side wall side pull bin: including side pull bin, drive machine, transmission mechanism and drag chain assembly (hydraulic extended backup manual expansion)

Double door after the car: a double door after the car, aluminum profile

There is a single door on each side of the front of the car: aluminum profile

After the ladder: reinforced aluminum alloy material, bearing capacity ≥ 150Kg;

Fire Extinguisher: Two 2kg portable carbon dioxide fire extinguishers are available.

(8) Warning system

1. Long row of police lights: The color of the lights meets the requirements of the safety supervision system.

2, multi-function alarm and megaphone power ≥100W, handle type

3. Strobe light/four corners on both sides of the box, and one at the end of the box, the color of the lamp meets the requirements of the safety supervision system.

(9) Communication system

9 digital radio station 2 units (one for each front and rear warehouse)

1. Digital-to-analog integration, supporting analog to digital smooth transition.

2. Supported frequency bands: VHF: 136-174MHz; 350MHz: 350-400MHz; UHF: 403-520MHz

3. In the direct mode, two time slots are talking at the same time; prefabricated text information

4. Output power: high power: 25-45W (VHF), 25-40W (UHF); low power: 1-25w

5. The type approval certificate for radio transmission equipment issued by the Ministry of Industry and Information Technology and the Radio Administration of the People's Republic of China is equipped with a vehicle intercom

Digital walkie-talkie (4 sets):

1. Digital-to-analog integration, supporting analog to digital smooth transition.

2. Supported frequency bands: VHF: 136-174MHz; 350MHz: 350-400MHz; UHF: 403-520MHz

Output power: ≥4W at high power and ≥1w at low power

Channel capacity: 256

Radio transmitter equipment type approval certificate issued by the Ministry of Industry and Information Technology of the People's Republic of China and the Radio Authority (1 unit): can charge ≥ 4 digital walkie-talkies at the same time

10 Roof equipment installation (1 set): embedded steel plate, etc., installed satellite TV antenna, suction cup antenna, etc.

Item Name

Brand

Specification

Model

Manufacturers

Chassis

SITRACK

ZZ1326V466

HE1

China National Heavy Duty Truck Group Jinan Commercial Vehicle Co., Ltd.

Box

Iron horse

OEM

DONG RUN ZE

Odor decomposer

Midea

KJ210G-C42

Midea Grou

Decoration

Iron horse

OEM

DONG RUN ZE

Folding Bed (With Mattress)

Iron horse

OEM

DONG RUN ZE

Bedding

Iron horse

OEM

DONG RUN ZE

Bedside Table

Iron horse

OEM

DONG RUN ZE

Locker

Iron horse

OEM

DONG RUN ZE

Coat Hook

Iron horse

OEM

DONG RUN ZE

mirror

Iron horse

OEM

DONG RUN ZE

	4	Toilet seated toilet	Ted	CZBQ4--Z	Beijing Ted Lang Technology Co., Ltd.	1
	5	Sliding door	Iron horse	OEM	DONG RUN ZE	1
	6	Sliding door slide	Iron horse	OEM	DONG RUN ZE	1
	7	Water tank	Iron horse	OEM	DONG RUN ZE	1
	8	Sewage tank	Iron horse	OEM,0.2 Ton	DONG RUN ZE	1
	9	Piping system	Iron horse	OEM	DONG RUN ZE	1
	10	Shower cubicle	Iron horse	OEM	DONG RUN ZE	1
6	1	generator	panda	P12000X	German panda	1
	2	Inverter integrated machine	Ancient top	SPR3000	Suzhou Guding Energy Technology Co., Ltd.	1
	3	UPS backup battery	Dawn	12V38AH	Tang Fu City Paifike Power Equipment Co., Ltd.	10
	4	Service battery	Male	12V100AH	Shenzhen Xiongyu Power Technology Co., Ltd.	1
	5	Cable tray	Iron horse	OEM	DONG RUN ZE	1
	6	Distribution System	Iron horse	OEM	DONG RUN ZE	1
7	1	Car air conditioner	GEE	KFR-72GW/ AaD3	Zhuhai Gree Electric Co., Ltd.	1

2	Fuel Independent Plumbing Heating Equipment	Jingwei	YJH-08-1A	Beijing Jingwei Auto Equipment Co., Ltd.	1
3	Auxiliary Tank	Iron horse	OEM,0.2 Ton	DONG RUN ZE	1
4	Ventilation Sunroof	Xinchao	DF700B	Jiangsu Xinchao Release Parts Co., Ltd.	2
5	Co Alarm	Hayman	710cvc	Shenzhen Haiman Technology Co., Ltd.	1
6	Tv Set	Skyworth	60V8E	Skyworth Group	1
7	Satellite Tv Mobile Receiving Antenna	Xunyiweitong	/CC25	Chengdu Xunyi Weitong Technology Co., Ltd.	1
8	Interior Lighting System	interstellar	LTE515,	Star Holdings Group Co., Ltd.	8
9	Emergency Lighting	Baiyu	ZY-ZF-ZDE3 WA	Wuhan Baihao Fire Equipment Co., Ltd.	1
10	Drinking Fountain	Meiling	MY-C31	Changhong Meiling Co., Ltd.	1
11	Beidou Satellite Navigation Vehicle Terminal	Star	JZ-BDC-101	Chongqing Jiuzhou Xingyi Navigation Equipment Co., Ltd.	1
12	Tiantong Satellite Phone	China Electric Power	Sc610	China Electronics Technology Group Corporation No. 50	1
13	Driving Recorder	Philips	ADR610s	Four institutes	1
14	Socket	Iron horse	OEM	DONG RUN ZE	1
15	Skirt Cabin	Iron horse	OEM	DONG RUN ZE	6

	16	Double door after the car	Iron horse	OEM	DONG RUN ZE	1
	17	Rear ladder	Iron horse	OEM	DONG RUN ZE	1
	18	Fire extinguisher	Iron horse	OEM	DONG RUN ZE	2
8	1	Long row of police lights	interstellar	TBD155191 G	Star Holdings Group Co., Ltd.	1
	2	Alarm	interstellar	200W	Star Holdings Group Co., Ltd.	1
	3	Strobe light	interstellar	LTE515	Star Holdings Group Co., Ltd.	4
9	1	Digital radio	Hainengda	MD780	Hainengda Communication Co., Ltd.	2
	2	Digital walkie-talkie	Hainengda	TD780	Hainengda Communication Co., Ltd.	4
	3	Hand-held station	Hainengda	MCA08	Hainengda Communication Co., Ltd.	1
	4	Roof equipment installation	Iron horse	OEM	DONG RUN ZE	1
	5	Appearance paint and logo	Iron horse	OEM	DONG RUN ZE	1

dongfeng truck part:

1700JK4-031 Transmission,Input Shaft For Dongfeng Transmission Series

We are mainly supply the following parts : 1.Dongfeng humvee EQ2050 series spare parts 2. Dongfeng EQ1093F6D spare parts 3.Dongfeng EQ2161N EQ2162G spare parts 4.dongfeng EQ2082E6D spare parts 5. Dongfeng kinland accessories (DFL4251, ...

1700Jk-048-B Transmission,Countershaft For Dongfeng Transmission Series

1700FT4-010 Transmission,Input Shaft For Dongfeng Transmission Series

1700DJL2-031 Transmission,Input Shaft For Dongfeng Transmission Series

1700J-048-D Transmission,Countershaft For Dongfeng Transmission Series

1700J-105 Transmission,Main Shaft For Dongfeng Transmission Series

1700JA24-031 Transmission,Input Shaft For Dongfeng Transmission Series

1700JB-031 Transmission,Input Shaft For Dongfeng Transmission Series

1700JH44-031 Transmission,Input Shaft For Dongfeng Transmission Series

1700DJL2A-031 Transmission,Input Shaft For Dongfeng Transmission Series

The Fifth Gear To Countershaft For Dongfeng Transmission Series

Transmission,Countershaft For Dongfeng Transmission Series

1700CK18-031 Transmission,Input Shaft For Dongfeng Transmission Series

Reverse Gear For Dongfeng Transmission Series

The Second And The Third Gear Fixed Gear Bed For Dongfeng Transmission Series

The Sixth Gear Assembly For Dongfeng Transmission Series

Odometer Driven Gear For Dongfeng Transmission Series

Main Shaft,Rear Bearing Cover Plate For Dongfeng Transmission Series

Constant Mesh Gear To Countershaft For Dongfeng Transmission Series

The Third Gear To Countershaft For Dongfeng Transmission Series

Market Type: After Market

Appliaction: dongfeng

The Fourth Gear To Countershaft For Dongfeng Transmission Series

The Second And The Third Gear Sliding Gear Sleeve For Dongfeng Transmission Series

The Fourth And The Fifth Gear Fixed Gear Bed For Dongfeng Transmission Series

The Fourth And Fifth Gear Sliding Gear Sleeve For Dongfeng Transmission Series

The Second Gear Assembly For Dongfeng Transmission Series

The Fourth Gear To Countershaft For Dongfeng Transmission Series

The Sixth Gear To Countershaft For Dongfeng Transmission Series

Reverse Gear For Dongfeng Transmission Series

The Fourth Gear Assembly For Dongfeng Transmission Series

The Sixth Gear Assembly For Dongfeng Transmission Series

Market Type: After Market

Appliaction: dongfeng

The Fifth Gear Assembly For Dongfeng Transmission Series

The Third Gear To Countershaft For Dongfeng Transmission Series

The Fourth Gear Assembly For Dongfeng Transmission Series

The First Gear For Dongfeng Transmission Series

Flange Assembly For Dongfeng Transmission Series

Transmission,Input Shaft For Dongfeng Transmission Series

The Second Gear To Countershaft For Dongfeng Transmission Series

Constant Mesh Gear To Countershaft For Dongfeng Transmission Series

The Fourth Gear To Counter Shaft For Dongfeng Transmission Series

Constant Mesh Gear To Countershaft For Dongfeng Transmission Series

Market Type: After Market

Appliaction: dongfeng

The Third Gear To Countershaft For Dongfeng Transmission Series

The Fourth Gear To Countershaft For Dongfeng Transmission Series

Constant Mesh Gear To Countershaft For Dongfeng Transmission Series

The Third Gear To Countershaft For Dongfeng Transmission Series

The Fourth Gear To Countershaft For Dongfeng Transmission Series

The Fourth Gear Assembly For Dongfeng Transmission Series

The Fourth Gear For Dongfeng Transmission Series

The First Gear For Dongfeng Transmission Series

Constant Mesh Gear To Countershaft For Dongfeng Transmission Series

The Second Gear Assembly For Dongfeng Transmission Series

The Sixth Gear Assembly For Dongfeng Transmission Series

Transmission,Countershaft For Dongfeng Transmission Series

The Second Gear To Countershaft For Dongfeng Transmission Series

The Fourth Gear To Countershaft For Dongfeng Transmission Series

Constant Mesh Gear To Countershaft For Dongfeng Transmission Series

The First Gear Assembly For Dongfeng Transmission Series

The Second Gear For Dongfeng Transmission Series

The Engine Throttle Body Assembly For Dongfeng Transmission Series

Synchronizer Cone Ring For The Fifth And The Sixth Gear For Dongfeng Transmission Series

Reverse Gear,Driven Gear For Dongfeng Transmission Series

The First And The Second Gear Synchronizing Ring For Dongfeng Transmission Series

1700M4-031 Transfer Case,Input Shaft For Dongfeng Transmission Series

The First And The Second Gear Bed For Dongfeng Transmission Series

The Fifth And Sixth Gear Sliding Gear Sleeve For Dongfeng Transmission Series

The Fifth And The Sixth Gear Bed For Dongfeng Transmission Series

Reverse Gear For Dongfeng Transmission Series

Dual Gear,Side Shield For Dongfeng Transmission Series

Auxiliary Box,Transmission Shaft For Dongfeng Transmission Series

Market Type: After Market

Appliaction: dongfeng

Engine,Intake Air Temperature Sensor For Dongfeng Transmission Series

Engine,Cooling Temperature Sensor For Dongfeng Transmission Series

Engine,Fuel Pump For Dongfeng Transmission Series

Engine,Fuel Guide Rail For Dongfeng Transmission Series

Engine Oxygen Sensor For Dongfeng Transmission Series

Auxiliary Box,Transition Plate For Dongfeng Transmission Series

Needle Roller Bearing For Dongfeng Transmission Series

Transmission,The Fourth Gear Assembly For Dongfeng Transmission Series

Transfer Case,Main Shaft For Dongfeng Transmission Series

1700JK1-135 Transfer Case,The Fourth Gear For Dongfeng Transmission Series

Transfer Case,Counter Shaft For Dongfeng Transmission Series

The First Gear Synchronizing Ring For Dongfeng Transmission Series

Reverse Gear ,Fixed Gear Bed For Dongfeng Transmission Series

Transmission Gear Sleeve,Gear Block For Dongfeng Transmission Series

Transmission, Driven Gear For Dongfeng Transmission Series

Transmission,Main Shaft For Dongfeng Transmission Series

Transmission,Top Cap For Dongfeng Transmission Series

Reverse Gear, Roller Baffle For Dongfeng Transmission Series

Reverse Gear, Sliding Gear Sleeve For Dongfeng Transmission Series

Transmission,Release Bearing Rod For Dongfeng Transmission Series

Market Type: After Market

Appliaction: dongfeng

Transmission,Release Bearing Bed For Dongfeng Transmission Series

Transmission,Auxiliary Box, Dual Gear For Dongfeng Transmission Series

Transmission,Gear To The Sixth Gear For Dongfeng Transmission Series

Transmission,Gear Seat Circle To The Sixth Gear For Dongfeng Transmission Series

Transmission,Power Takeoff Assembly For Dongfeng Transmission Series

Transfer Case,Synchronize Ring For Dongfeng Transmission Series

Transfer Case,Flange For Dongfeng Transmission Series

Transfer Case,Driving Gear For Dongfeng Transmission Series

Engine ECU Computer Module For Dongfeng Transmission Series

Engine,Ignition Coil For Dongfeng Transmission Series

Market Type: After Market

Appliaction: dongfeng

Transmission, Gear Sleeve For Dongfeng Transmission Series

Transmission,Gear Block For Dongfeng Transmission Series

Transfer Case,Input Shaft For Dongfeng Transmission Series

2202DC-084 Intermediate Support & Bracket For Dongfeng Intermediate Support & Bracket Series

Intermediate Support(New Type) For Dongfeng Intermediate Support & Bracket Series

Intermediate Support(Auway) For Dongfeng Intermediate Support & Bracket Series

Intermediate Support (Six Flat Wood) For Dongfeng Intermediate Support & Bracket Series

Transmission Fork For Dongfeng Transmission Series

1700M-282 Transmission Fork For Dongfeng Transmission Series

Intermediate Support & Bracket(Old Type) For Dongfeng Intermediate Support & Bracket Series

Market Type: After Market

Appliaction: dongfeng

Select to

Intermediate Support Bracket Assembly For Dongfeng Intermediate Support & Bracket Series

2202KJ101-0222 Intermediate Support For Dongfeng Intermediate Support & Bracket Series

Intermediate Support J6 For Dongfeng Intermediate Support & Bracket Series

Intermediate Support Bracket(Thicken) For Dongfeng Intermediate Support & Bracket Series

Intermediate Support & Bracket(Nine Flat Wood) For Dongfeng Intermediate Support & Bracket Series

Intermediate Support (Five Flat Wood) For Dongfeng Intermediate Support & Bracket Series

Intermediate Support(Ghalefar) For Dongfeng Intermediate Support & Bracket Series

Intermediate Support(Northern Benz) For Dongfeng Intermediate Support & Bracket Series

2202Z-084 Intermediate Support For Dongfeng Intermediate Support & Bracket Series

Intermediate Support Bracket(Widen) For Dongfeng Intermediate Support & Bracket Series

J6 Intermediate Support Bracket For Dongfeng Intermediate Support & Bracket Series

Intermediate Support(Old Type) 141 For Dongfeng Intermediate Support & Bracket Series

2202KJ201-083 Intermediate Support For Dongfeng Intermediate Support & Bracket Series

2202KT201-082 Intermediate Support For Dongfeng Intermediate Support & Bracket Series

2202N74-080 Intermediate Support For Dongfeng Intermediate Support & Bracket Series

2202N74-083 Intermediate Support For Dongfeng Intermediate Support & Bracket Series

2202Q08-080 Intermediate Support & Bracket For Dongfeng Intermediate Support & Bracket Series

2202Q08-080 Intermediate Support For Dongfeng Intermediate Support & Bracket Series

2202Z66D-080-B Intermediate Support For Dongfeng Intermediate Support & Bracket Series

2202Z66D-083-A Intermediate Support For Dongfeng Intermediate Support & Bracket Series

Market Type: After Market

Appliaction: dongfeng

2202Z66D-083 Intermediate Support For Dongfeng Intermediate Support & Bracket Series

2202D5-083 Intermediate Support For Dongfeng Intermediate Support & Bracket Series

2202D-080 Intermediate Support & Bracket For Dongfeng Intermediate Support & Bracket Series

Intermediate Support Rubber Gasket For Dongfeng Intermediate Support & Bracket Series

Intermediate Support For Dongfeng Intermediate Support & Bracket Series

Intermediate Support & Bracket For Dongfeng Intermediate Support & Bracket Series

Intermediate Support(Old Type) For Dongfeng Intermediate Support & Bracket Series

Intermediate Support For Dongfeng Intermediate Support & Bracket Series

2202DKD-084 Intermediate Support For Dongfeng Intermediate Support & Bracket Series

Intermediate Support Bracket For Dongfeng Intermediate Support & Bracket Series

Market Type: After Market

Appliaction: dongfeng

Spider Assembly For Dongfeng Intermediate Support & Bracket Series

Intermediate Support & Bracket For Dongfeng Intermediate Support & Bracket Series

Intermediate Support Bracket For Dongfeng Intermediate Support & Bracket Series

Wheel Cover Strip For Dongfeng T-Lift

Market Type: After Market

Appliaction: Dongfeng T-lift

Telescopic Hose For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

Air Reservoir For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

Electronic Accelerator Pedal For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

Air Dryer,Four Circuit Safety Valve For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

Intermediate Support For Dongfeng T-Lift 2202Z-084

Intermediate Support For Dongfeng T-Lift 2202Z-084 We are mainly supply the following parts : 1.Dongfeng humvee EQ2050 series spare parts 2. Dongfeng EQ1093F6D spare parts 3.Dongfeng EQ2161N EQ2162G spare parts ...

Market Type: After Market

Appliaction: Dongfeng T-lift

Hand Brake Line For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

Optional Shift Soft Shaft For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

Optional Shift,Soft Shaft For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

Oil Cylinder,Lower Socket For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

Rear Mounting ,Left Bracket With Rubber Sleeve Assembly For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

Front Mounting,Lug For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

Battery Box Assembly For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

Left Hydraulic Lock Bolt Assembly For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

Bracket(Left Right)-Engine Rear Mounting For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

Cigarette Lighter Assembly For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

Electromagnetic Battery Main Switch For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

Electronic Controlled Air Horn For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

Electronic Speedometer Sensor Assembly For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

Transmission Control Mechnism For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

The First ,Front Transverse Beam Assembly For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

Idle Wheel For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

Engine,Rear Mounting Bracket For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

Rear Mounting,Lower Bracket For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

Mask Brace Strut,Bracket For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

Front Suspension,Upper Left Bracket For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

Front Right Mudguard Assembly For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

Water Tank Bracket For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

Hydraulic Lock( Left Right) For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

Right Taillight Bracket Assembly For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

Bracket,Frame For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

Steering Linkage Device For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

Left Step Beam Welding Assembly-Frame For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

Electronic Accelerator Pedal For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

Multi-Function Buzzer For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

Relay For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

Relay Assembly For Dongfeng Kingrun

Market Type: After Market

Appliaction: dongfeng kingrun

Tag:

Contact Person: Mr. Tom

Tel: 86-152-7135-7675

Fax: 86-722-702

Other Products

FOTON 6x2 Outdoor Mobile Camping Truck With Living Room and Kitchen

HS-Code: 8705909990
Keywords: Mobile Kitchen, Camping Dining Outdoors
Utensils: Camping Dining Living Outdoors
Fuel Type: Diesel

ISUZU Mobile Generator Truck For Emergency Power Supply 200kw 50hz 3 Phase 220V Unit

HS-Code: 8705909990
Cell: 8615271357675
Key Parts: emergency power supply generator unit
Chassis: ISUZU

Water Purification Vehicle Truck mounted Purification System Equipment Vehicle Army Portable Water Treatment Units

HS-Code: 8705909990
Keywords: Mobile Kitchen, Camping Dining Outdoors
Utensils: Army Portable Water Treatment Units
Fuel Type: Diesel

SITRAK Emergency Accident Rescue Vehicles On-site rescue and repair of various accidents

HS-Code: 8705909990
Keywords: Mobile Kitchen, Camping Dining Outdoors
Utensils: Camping Dining Living Outdoors
Fuel Type: Diesel

ISUZU Caravan Outdoor Mobile Camping Truck With Living Room for 5-6 men top replacement air fan and solar panel

HS-Code: 8705909990
Keywords: Mobile Kitchen, Camping Dining Outdoors
Utensils: Camping Dining Living Outdoors
Fuel Type: Diesel
