Product Details:
Payment & Shipping Terms:
|
| Tank Steel: | 12mm,14mm | Material: | Q345 |
|---|---|---|---|
| Good For: | Hazardous Liquids Gas Propane, Isobutane, Isobutene, Liquid Ammonia, Dim | HS-Code: | 8609001200 |
| Cell: | 8615271357675 | Size: | 9144*2438*2591mm |
$15,000.00 - $24,000.00 / Sets | 1 Set/Sets (Min. Order)

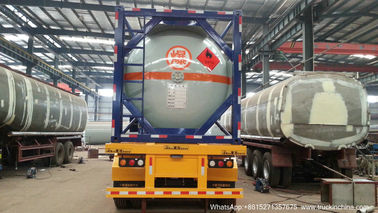

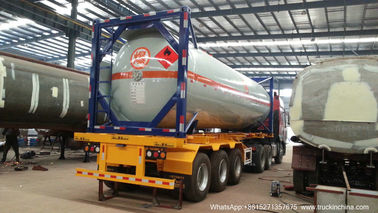

| SPECIFICATIONS FOR 30FT PROPANE CH4 ISO TANK CONTAINER | |||
|
Dimensions |
Size | feet | 30' |
| Tank Dimensions(DN*Thickness*Length) | mm | 2250x13/14x8860 | |
| External Dimensions(Length*Width*Height) | mm | 9125x2438x2591 | |
|
Weights |
Capacity | m3 | 33.5 |
| Pay load | t | 14.07 | |
| Tare Weight | t | 11.33 | |
| Total Weight | t | 25.4 | |
|
Technical Spec. |
Filling Medium | - | Propane/CH4 |
| Filling Ratio | - | 0.42 | |
| Design Pressure | MPa | 1.8 | |
| Material | - | Q345R | |

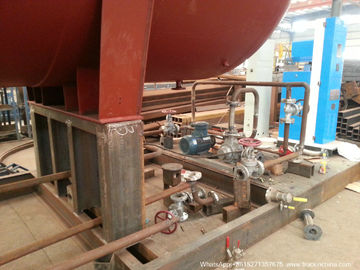

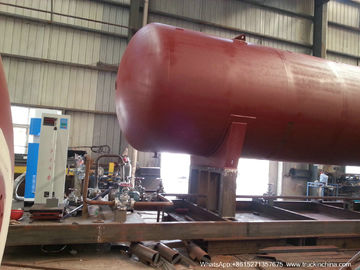

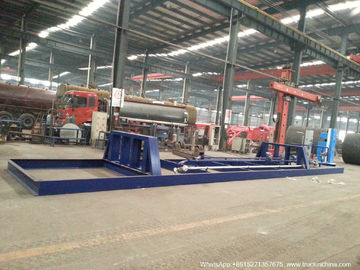

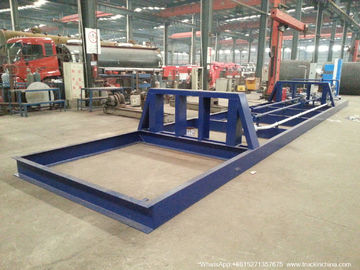

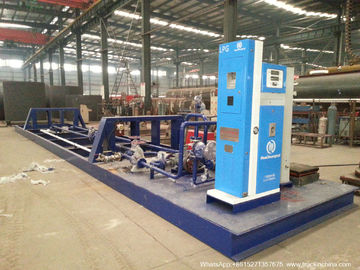

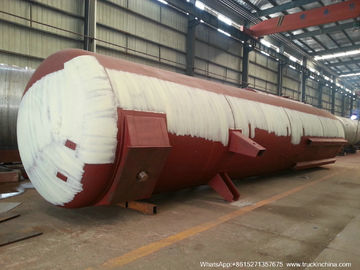

LPG Gas Refilling Skid Plant Station
Material:Steel
Certification:ASME, CCC, ASME, ISO, SGS, BV, SON CAP
Size:9126x2438x2438mm, 20ft 30ft 40ft
OEM No.:Optional
Max Payload:20T, 22800kg
Place of Origin:Hubei, China
Model Number:30ft LPG Tank Container
Tank material:Carbon steel Q345R or Q370R
Capacity:20.3m3 20.3cbm 20300litres
Filling Medium:Propane, Isobutane, liquid ammonia,dimethyl ether etc
Tare Weight:7340kg
Length (feet):30'
Shanghai,Qingdao,Shenzhen,Xiamen,Ningbo in China 22.5m3 ISO 30 feet Trichlorosilane tank container:
| Container Tank parameter | ||
| Dimensions | Outer Length(mm) | 9125 |
| Outer Width(mm) |
2438 | |
| Outer Height(mm) |
2438 | |
| Inner length(mm) | 8730 | |
| diameter(mm) | 1850 | |
| thickness(mm) | 8 | |
| Storage medium | trichlorosilane | |
| Capacity(m3) | 22.5 | |
| Loading quality(kg) | 25650 | |
| Tank materials | 8 mm Q345R | |
| Head thickness(mm) | 8mm | |
| Prism materials | 16Mn | |
| Tank Curb Weight (kgs) | 7350 | |
| Tank shape | cylinder | |
| Design pressure(Mpa) | 0.7 | |
| Paint | First step: Blowing sand; second step:Spray Antirust primer; third step: Spray topcoats | |
1.5 Pressure & Temperature Rating
Design Reference Temperature 55°C
Maximum Allowable Working Pressure 17bar (1.77MPa.)
Hydrostatic Test Pressure 22bar(2.2MPa.)
External Design Pressure 0.1 bar
Ambient Temperature Range -40 to +55°C
1.6 Material Of Construction
Framework :Hollow section Q345-D--GB/T1591
Plates Q345-D--GB/T1591
Rolled section Q345-D--GB/T1591
Shell & Heads Q345R
1.7NDE (Non Destructive Examination)
| TYPE | EXTENT | STAGE |
| Visual | 100% All welds | Before & After Hydrostatic test. |
| RT | 100% All long. & circ. butt welds | Before Hydrostatic test |
| PT | 100% All nozzle-to-tank attachment welds | Before Hydrostatic test |
| 100% All pad & attachment welds attach to tank which thickness more than 6mm. | Before Hydrostatic test |
2.0 Tank Fittings And Accessories
2.1 Manhole
Quantity One
Dimensions 500mm ID
Specification Q345R ; bolted type (24 x M24)
Gasket PTFE
Location Rear ellipse end in the crown section
2.2 Safety Relief Valve Assembly
Quantity One
Gasket PTFE
Location Top of the tank.
2.3 Gas Line
Quantity One
Dimensions DN 50 (2")
Gasket PTFE
2.4 Liquid Line
Quantity One
Dimensions DN 50 (2")
Gasket PTFE
Valve Cabinet
A steel valve protection cabinet, houses the gas and liquid line valves, pressure gauge and thermometer.
2.5 Provision for Baffles
Two sets of surge baffles shall be installed.
2.6 Thermometer -40~+80
2.7 Pressure Gauge A pressure gauge from pressure. 0-40 bar
2.8 Insulating methods Sunshade
ISOTANK List
| The Main Technical Parameters of Tanks (ASME Standard) | ||||||||||||
Item |
Loading Medium | Model | Capacity (m3) |
Design Pressure (Mpa) |
Design Temperature (c) |
Tank Material | Nominal Tank Thickness (mm) |
Insulation | Tare weight (Kg) |
Max. Gross Weight (Kg) |
Dimension (LX WX H)(mm) |
Loading Method |
| 1 | R134a | T50 | 24 | 1.38 | -40 /+55 | SA-612N | 11 | Sunshade | 6400 | 34000 | 6058 X 2438 X2591 | Down load unload |
| 2 | R22 | 22 | 2.1 | -40/+50 | 18 | 8800 | ||||||
| 3 | R143a | 22 | 2.42 | 20 | 9500 | |||||||
| 4 | R125 | 22 | 2.75 | 21 | 9500 | |||||||
| 5 | R32 | 20 | 3.44 | 25 | 10900 | |||||||
| 6 | AHF | T19 | 21 | 1.0 | -40/+55 | SA516M NGr.485 | 12 | No | 6900 | Up load unload | ||
| 7 | Trichlorosilan | T14 | 21 | 0.5 | -40/+50 | Q345R (16MnR) |
12 | No | 6780 | 34000 | 6058 X 2438 X2591 | |
| 8 | Liquid Chlorine | T50 | 20 | 1.7 | -40/+50 | 16 | 8300 | |||||
| 9 | 21.72 | 1.62 | 16 | 8900 | ||||||||
| 10 | Liquid Ammonia |
T50 | 21.6 | 2.2 | -40/+50 | 06Cr19Ni10 | 22 | Packing Insulation | 11970 | |||
| 11 | SO2 | T20 | 21 | 1.03 | 40 /+60 | 16MnDR | 12 | No | 6900 | |||
| 12 | Cryogenic Liquid | T75 | 19.8,20 | 0.75-2.35 | -196/+50 | Inner Tank: 06Cr19Ni10 Outside Tank:Q345R |
Vacuum With Mutli-wrapped | 8600/12880 | Down load unload | |||
| The Main Technical Parameters of Tanks (China Standard) | ||||||||||||
Item |
Loading Medium | Model | Capacity (m3) |
Design Pressure (Mpa) |
Design Temperature (c) |
Tank Material | Nominal Tank Thickness (mm) |
Insulation | Tare weight (Kg) |
Max. Gross Weight (Kg) |
Dimension (LX WX H)(mm) |
Loading Method |
| 1 | R134a | T50 | 24 | 1.38 | -40 /55 | Q345 (16MnR) | 12 | Sunshade | 6500 | 34000 | 6058 X 2438 X2591 | Down load unload |
| 2 | R22 | 20 | 2.1 | -40/+50 | 16 | 7850 | ||||||
| 3 | 24 | 18 | 9100 | |||||||||
| 4 | R125 | 22 | 2.75 | 22 | 9900 | |||||||
| 5 | R32 | 22 | 3.44 | 28 | 12000 | |||||||
| 6 | 23.7 | -40 /55 | 12700 | |||||||||
1. DRZ Cryogenic Storage Tank include the following ISO cryogenic tank:10ft, 12ft, 20ft, 40ft
2. Used for: liquid oxygen tank container, liquid nitrogen tank container, liquid argon tank container, liquid Nitrous Oxide tank container, liquid carbon dioxide tank container, LNG tank container, LPG tank container, AHF tank container, Liquid Chlorine tank container, liquid ammonia tank container.
3. Tank capacity: 7.7m3~60m3.
4. Tank pressure: 8bar, 16bar ,24Bar or based on user requirement.
5. certificate: RID/ADR, CFR49, IMDG, T75 UN PORTABLE, TIR , UIC, CSC, TC, US DOT, UK-DFT, FRA
Hydrogen Peroxide Iso Containers, Stainless Steel Iso Tank Containers
Sulphuric Acid Iso Containers, Stainless Steel Iso Tank Containers
Nitric Acid Iso Containers, Stainless Steel Iso Tank Containers
Mining Chemicals Iso Containers, Stainless Steel Iso Tank Containers
Food Products Iso Containers, Stainless Steel Iso Tank Containers
Solvents Iso Containers, Stainless Steel Iso Tank Containers
Oils Iso Containers, Stainless Steel Iso Tank Containers
Resins Iso Containers, Stainless Steel Iso Tank Containers
Alcoholic Beverages Iso Containers, Stainless Steel Iso Tank Containers
Mo 1 Iso Containers, Stainless Steel Iso Tank Containers
Imo Iso Containers, Stainless Steel Iso Tank Containers
Imo 5 Iso Containers, Stainless Steel Iso Tank Containers
Imo 7 Iso Containers, Stainless Steel Iso Tank Containers
Food Tank Containers And Iso Containers, Stainless Steel Iso Tank Containers
Tank Containers Containers And Iso Containers, Stainless Steel Iso Tank Containers
Iso Containers, Stainless Steel Iso Tank Containers Hazardous.
Iso Containers, Stainless Steel Iso Tank Containers Non-Hazardous Liquid Materials.
Horizontal Iso Tanks And Containers, Stainless Steel Iso Tank Containers
Vertical Iso Containers, Stainless Steel Iso Tank Containers
The Aim Of Iso Is To Create a Standardised Process Of Manufacture So That Things Can Be Interchangeable No Matter Where You Are. Having Products With An Iso Label Enables People To Know Exactly How The Product Will Work And Know Everything About It.
There Are Plenty Of Advantages For Using An Iso Tank. They Are a Highly Reliable, Cost Effective And Safe Way Of Transporting Bulk Liquids From Place To Place.
T9, T10,T11,T14,T50 portable tank Standard ISO tank 10.9K-26K cement tank,
PTFE/PE Lined tanks for hydrofluoric acid liquid ,hydrochloric acid ,sodium hypochlorite HCl,NaOH,NaClO liquid etc.
Insulation Tank for bitumen Liquid Asphalt,crude oil etc.Portable Tank Container
Tank Containers can be used to carry the following products:
Portable Tank Container
Products
ISO Tank - Ammonium Nitrate
ISO Tank - Bio-diesel
ISO Tank - Molasses
ISO Tank - Caster Oil
ISO Tank - Hexane
ISO Tank - Ethanol
ISO Tank - Ethylene
ISO Tank - Methanol

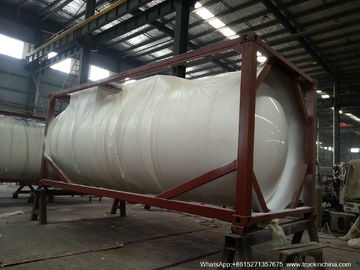

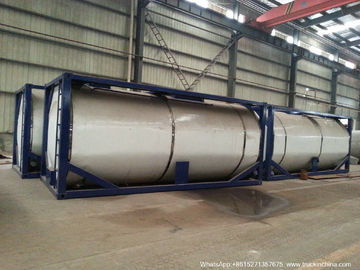

| 30 FT TRICHLOROSILANE CL3HSI LPG TANK CONTAINER | |||
| Dimensions | Size | feet | 30 |
| Tank Dimensions(DN*Thickness*Length) | mm | 1800x8x8300 | |
| External Dimensions(Length*Width*Height) | mm | 9126x2438x2438 | |
| Weights | Capacity | m3 | 20.3 |
| Pay load | t | 22.8 | |
| Tare Weight | t | 7.34 | |
| Total Weight | t | 30.48 | |
| Technical Spec. | Filling Medium | - | Trichlorosilane/Cl3HSi |
| Filling Ratio | - | 1.14 | |
| Design Pressure | MPa | 0.7 | |
| Material | - | Q345R | |
MAIN FEATURES
1) Available for "warehouse to warehouse" transportation, making the transportation safer and more reliable.
2) Available for highway, railway, inland river and sea transportation, greatly shortening the loading period of the port. The container can be piled to 6~9 storeys, occupying little space.
3) Can be used as transporting tools, also storage container on the sites of production and operation.
4) Saving the package cost of barreled products.
5) Availabe for built-in LLDPE, or external thermal insulation and steam heating tubes, to match some mediums with special requirements.
6) CCS authentication, C3 certification of TS available.
22.5m3 ISO 30 feet LPG tank container:
| Container Tank parameter | ||
| Dimensions | Outer Length(mm) | 9125 |
| Outer Width(mm) |
2438 | |
| Outer Height(mm) |
2438 | |
| Inner length(mm) | 8730 | |
| diameter(mm) | 1850 | |
| thickness(mm) | 8 | |
| Storage medium | trichlorosilane | |
| Capacity(m3) | 22.5 | |
| Loading quality(kg) | 25650 | |
| Tank materials | 8 mm Q345R | |
| Head thickness(mm) | 8mm | |
| Prism materials | 16Mn | |
| Tank Curb Weight (kgs) | 7350 | |
| Tank shape | cylinder | |
| Design pressure(Mpa) | 0.7 | |
| Paint | First step: Blowing sand; second step:Spray Antirust primer; third step: Spray topcoats | |

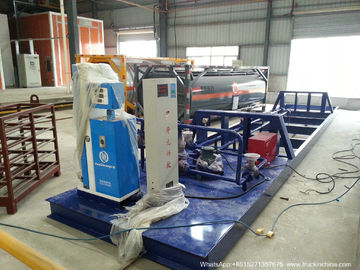

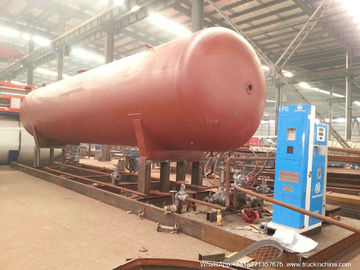

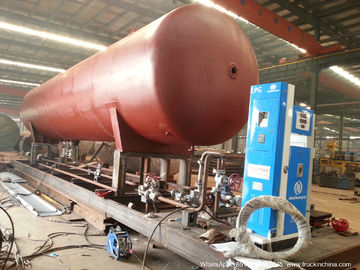

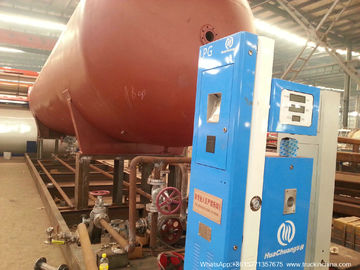

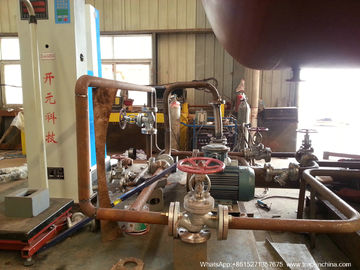

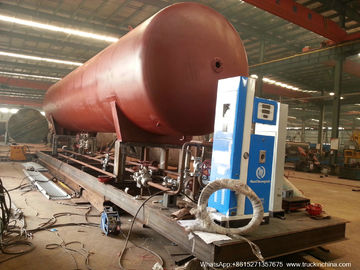

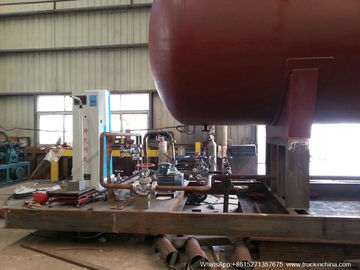

LPG MobileTank Container Gas Filling Station 20000L With LPG Filling Dispenser

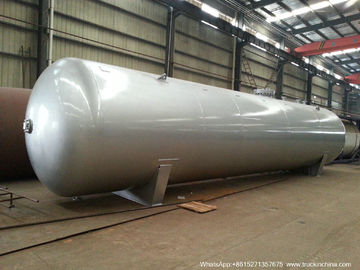

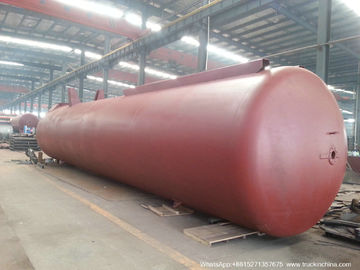

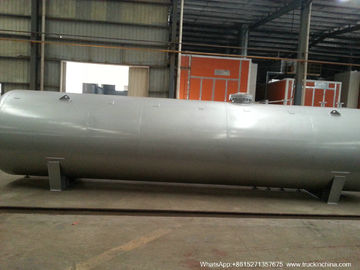

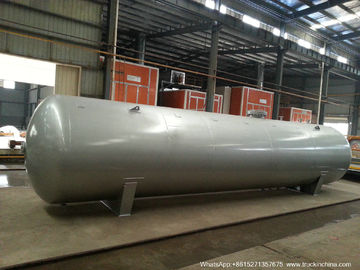

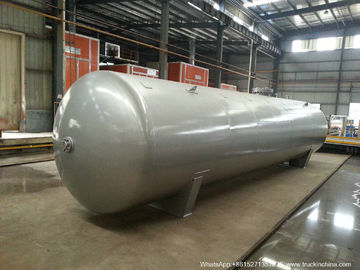

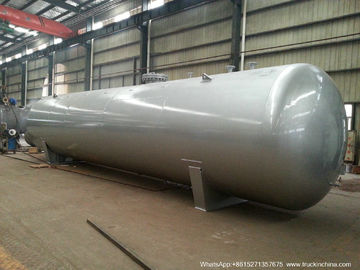

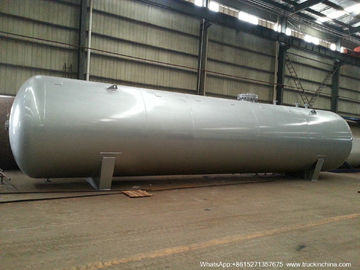

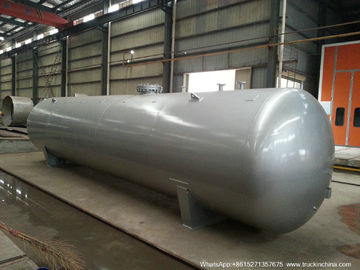

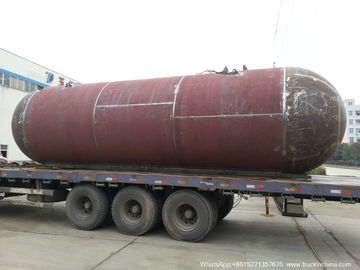

LPG storage tank 20000L With LPG Filling Dispenser
| Items | data | Items | data | |
| Tank | Filling medium |
LPG |
Tank mass | 6650kg |
| fact cubage | 15- 20M3 | Payload (Product weight) | 10080kg | |
| Design pressure | 1.77MPa |
External Dimensions(mm)
|
6100*2438*2438 | |
| Thickness of tank | 14mm | |||
| Thickness of cover | 14mm | Install coefficient | 0.42 | |
| Tank material | Q345DR | Hydraulic test pressure | 2.21MPa | |
| Corrosion allowance | 1mm | Pressure of leak test | 1.77MPa | |
| Heat treatment type | Wholly get rid of tress |
Medium density (kg/m3)
|
448.4(50°C) | |

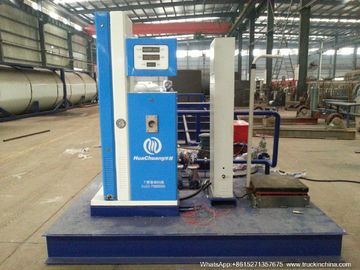

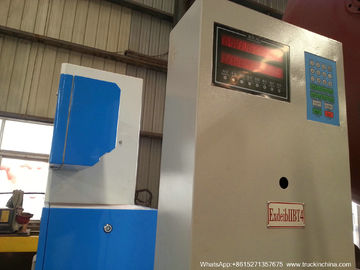

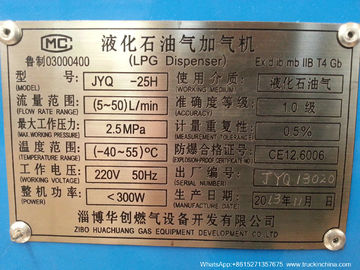

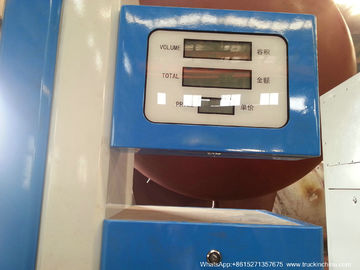

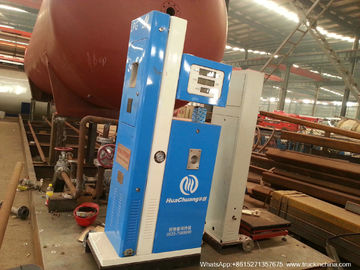

LPG dispenser produced in single or double delivery versions, one or dual sides view. Equipped with electronic computer,solenoid valves and amount preset.Option with temperature compensation(ATC) is available on request.
Technical Specifications:
* External Dimension: 1685× 820× 400
* Ambient Temperature: -40o C~+55o C
* Power: AC110V± 20%, AC220V± 20%, AC380V± 20% (50Hz)
* Flow rate: 1~45 liter/min
* Measurement precision: ± 0.5%
* Rated working voltage: 2.2MPa
* Density preset range: 0.5000-0.6999
* Gas-filling preset range: 1~9900 L or kg
* Rating power: <100W
* Unit price range: 0~9999, 0~999999 (changeable)
* Single range: 1~9999.99, 1~999999.99(changeable)
* Accumulative range: 0~9999999999.99
* ATC (automatic temperature compensation) function.
* Automatic proportion adjust for butane and propane.
* Electronic Calibration.
* Printer (option).
* Fueling times limit function.
* Stop fueling by integer sale.
* Can set the decimal point for the display, so can be used in many country with different currency rate.
* Leaves the communication ports, so it can communicate with the gas station management system.
