Product Details:
Payment & Shipping Terms:
|
| HS-Code: | 8705909990 | Cell: | 8615271357675 |
|---|---|---|---|
| Tank Material: | Carbon Steel ,stainless Steel ,Aluminium Alloy | Dimension: | 5998x2060x2620mm |
| Capactiy: | 3000Liter -6000Liters | Pump: | Oil Pump Mounted |
| Highlight: | oil delivery truck,mobile fueling trucks |
||
MINI 3000Liter Refuelling Fuel Tank Truck for Petroleum Oil /Gasoline/ Petrol/ Diesel Refuelling Express
| Fuel tank structure parameters | ||||
| Tank dimensions | 3900×1750×1200mm | Tank volume | 3000L - 6000L | |
| Tank material | Carbon steel | Tank thickness | 5mm | |
| Color and Logo | Optional | |||
| Standard configuration | Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose. | |||
| Selective configuration | Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system,divided into several bins. | |||

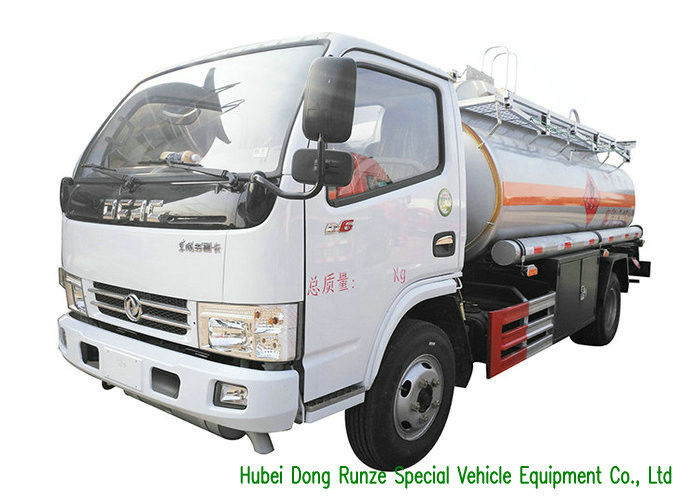

Truck Photo show:
DONGFENG 4*2 fuel tanker truck fuel dispenser 4000L~6000L mobile LHD/RHD refueller truck
Euro III
| Description | Fuel Tank Truck for Crude Oil Diesel and Petrol Transport | |
| Drive Model | 4X2 | |
| Chassis | EQ1060 | |
| Vehicle Main Dimensions | Dimensions(L x W x H)mm | 5990*1960*2400 |
| Wheel base (mm) | 3300 | |
| Overhang (front/rear) (mm) | 1032/1658 | |
| Wheel track (front/rear) (mm) | 1506/1466 | |
| Approach/Departure angle(°) | 18/12 | |
| Weight in KGS | Curb Weight | 3365 |
| GVW. | 6495 | |
| Max. driving speed(km/h) | 80 | |
|
Engine
|
Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Horse Power(HP) | 95HP | |
| Emission standard | Euro III | |
| Clutch | Reinforced diaphragm clutch | |
| Steering Gear | Power steering, hydraulic steering with power assistance | |
| Tire | 7.00-16 tire , 6 pcs+1 spare tire | |
| UPPER | ||
| Cubage | 4-5CBM | |
| Material | Q235 carbon steel | |
| Tank Thickness | <5mm> carbon steel | |
| Equipment |
Equipped with pump .valves and pipes,a set of Fuel Dispenser,Fueling truck equipped
with a set of filling unit.
Equipped with a ladder on tank,It can be design to have several compartments According to
your requirements,Equipped
with speed limiter.The speed limit of 80 km/h.
|
|
EURO 5
| Vehicle Model | DRZ5071GJY5EQ | Vehicle Brand | DRZ |
| Overall dimensions | 5998x2060x2620mm | Curb weight | 3720kg |
| Tank dimensions | 3900x1750x1200mm | Tank volume | 6000L |
| Chassis parameters | |||||
| Chassis model | EQ1070SJ3BDF | Chassis brand | DONGFENG | ||
| Overall dimensions | 6740X2100X2390mm | Wheel base | 3308mm | ||
| Front/rear wheel track | 1745/1620mm | Front/rear suspension | 1130/1810mm | ||
| Approach/departure angle | 21/14.5° | Maximum speed | 80km/h | ||
| Chassis Manufacturer | Dongfeng Automobile Co.,Ltd | ||||
| Cab | Configuration | 1730,Single row cab, allowable 3 passengers, ABS. | |||
| Color | White, other color is optional | ||||
| Engine | Model | YN33CRE1 | |||
| Emission | Euro 5 | ||||
| Type | in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine | ||||
| Rated power | 116hp,rated power speed 3000rpm | ||||
| Displacement | 2982ml | ||||
| Max Torque | 365N.m | ||||
| Bore x stroke | 102X115mm | ||||
| Manufacturer | Kunming Yunnei Power Co.,Ltd | ||||
| Tire | Size | 7.00-16 nylon tire | |||
| Number | 6+1 nos | ||||
| Frame | 200X5mm | ||||
| Brake system | Air break | ||||
| Front axle | 2.0T | ||||
| Rear axle | 3.5T | ||||
| Drive form | 4X2 | ||||
| Rated voltage | 24V,DC | ||||
| Transmissions | 5 speed forward 1 reverse. | ||||
| Steering device | Power assisted steering | ||||
| Steering wheel | Left hand drive | ||||
| Selective configuration | |||||
| If there is a slight change in the chassis parameters above,please take the actual product as the standard | |||||
FAQ
· MOQ:1 SET
· Delivery date:25 workdays after we received deposit.
· Payment term:
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery after production finish.
2. 50% contract value as the deposit by T/T,50% contract value payoff before delivery after production finish
