Product Details:
Payment & Shipping Terms:
|
| HS-Code: | 8705909990 | Cell: | 8615271357675 |
|---|---|---|---|
| Chassis: | FOTON AUMAN | Function:: | Fuel Delivery Truck, Fuel Dispensing Tanker |
| Tank Volume: | 27000 - 30000L | Color:: | Red, Blue, White |
| High Light: | oil delivery truck,fuel transport trucks |
||
FOTON-Auman-8x2 Fuel Tanker Truck For Diesel Oil Fuel Road Transport
27000Liters -30000Liters
Oil Tank Truck: According To The Transport Medium, Configuration, And Each Place Name Is Different, There Are Many Different Terms, Such As:, Tanker, Oil Tanker, Oil Tank Truck, Fuel Tanker, Oil Transport Truck, Fueling Truck, Flowing Fueling Truck, Tax Controlled Fueling Truck, Computer Controlled Fueling Truck, Gasoline / Diesel Oil Transporter Carrier, Coal Tar Transport Truck, Lubricating Oil Transport Truck, Crude Oil Transport Truck, Heavy Oil Transport Truck, Petroleum Product Transport Truck, Etc.
Factory Supplied Foton 8x2 24000 Liters Heavy Oil Tanker Truck Low Price For Salefactory Supplied Foton 8x2 24000 Liters Heavy Oil Tanker Truck Low Price For Sale
Oil Tank Truck According To Its Appearance And Can Be Divided Into: Flat Head Oil Tank Truck, Pointed Nose Oil Tank Truck, Block Style Oil Tank Truck, Single Bridge Oil Tank Truck, Dual-Axle Oil Tank Truck, Rear Dual-Axle Oil Tank Truck, Light Weight Oil Tank Truck, Small, Medium, Large Oil Tank Truck, Oil Tank Semi Trailer, 6x2 Oil Tank Truck, 8x4 Oil Tank Truck, Etc.
Factory Supplied Foton 8x2 24000 Liters Heavy Oil Tanker Truck Low Price For Salefactory Supplied Foton 8x2 24000 Liters Heavy Oil Tanker Truck Low Price For Salefactory Supplied Foton 8x2 24000 Liters Heavy Oil Tanker Truck Low Price For Sale
Oil Tank Truck According To The Brand, And Can Be Divided Into: Dongfeng Tanker Truck, Faw Tanker Truck, Foton Tanker Truck, Sino Truck Tanker Truck, Beiben Tanker Truck, Jac Tanker Truck, Shacmen Tanker Truck, Camc Tanker Truck, Isuzu Tanker Truck, Jmc Tanker Tanker Truck, Etc.
Factory Supplied Foton 8x2 24000 Liters Heavy Oil Tanker Truck Low Price For Salefactory Supplied Foton 8x2 24000 Liters Heavy Oil Tanker Truck Low Price For Sale
Transport Medium Is Applicable To Transport Gasoline, Kerosene, Diesel Oil, Vegetable Oil, Edible Oil, Heavy Oil, Coal Tar And Non-Petroleum Products Such As Alcohol, Aldehyde, Benzene, Ether, Or Other Liquid Substances.
Factory Supplied Foton 8x2 24000 Liters Heavy Oil Tanker Truck Low Price For Sale

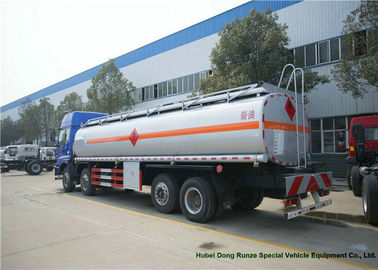

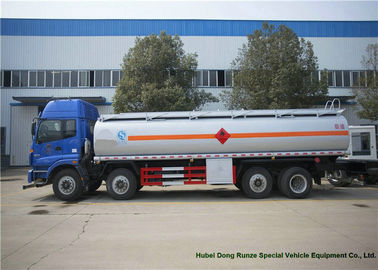

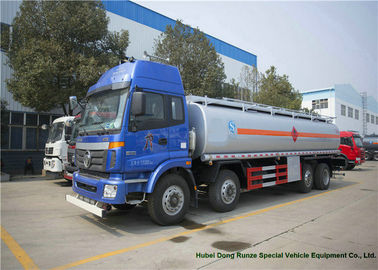

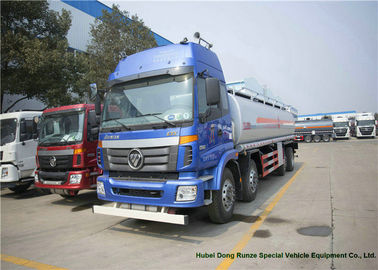

Oil Tank Truck Detail Photo For Reference. With Pump In, Pump Out Ball Valve And 1 One-Meter Of Appendix Tool Box.
Oil Flow Gauge, Bottom Oil Filling System, Fueling Machine Can Be Added If Needed.
Factory Supplied Foton 8x2 24000 Liters Heavy Oil Tanker Truck Low Price For Sale
1. Foton Auman 8x2 Oil Tank Truck Fuel Tank Truck
2. Engine:Isle290 40, 290hp ,Euro Iv Emission Standard
3. Flat Roof Cabin, Air Conditioner
4. High Quality And Competitive Price
All Specification And Design Can Be Customized !
1. Oil tank truck also called flow bowser, computer tax-controlled tanker truck, gasoline truck, oil truck.
2. Mainly used for oil derivatives (gasoline, diesel oil, crude oil, lubricating oil and coal tar oil )transportation&storage.
It's made of tanks, take power device, a transmission axis, a gear oil pump, pipeline system and other parts.
3. Four consists of oil pump, the 3-way ball valve pipe network system, two-way of ball valve, strainer, pipe.
4. Chassis brand: HOWO, Dongfeng, Shacman, JAC , ISUZU , Foton etc are available
Material: carbon steel, aluminium, stainless steel Capacicity : 25000 liters, 30000 liters , 35000liters
5. Usage: transport oil, fuel petroleum, chemical liquid Axle: 2 axles, 3 axles, 4 axle Type: 4x2, 6x2, 6x4, 8x4.
| FOTON 8x4 35000 Litres Mobile Diesel Tanker Truck | ||
| General | Vehicle Brand | DRZ |
| Chassis Brand | FOTON | |
| Overall Dimension | 10250 x 2500 x 3400 mm | |
| GVW / Kerb Weight | 31,000 kg / 11,455 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Air conditioner is optional | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Cummims engine | |
| Power | 315 Ps (231 KW) | |
| Displacement | 8900 ml | |
| Emission Standard | Euro III | |
| Chassis | Drive Type | 8X4, left or right hand drive |
| Transmission | 9-speed front, 1 reverse | |
| Wheelbase/No. of axle | 1800+4725+1300 mm / 4 | |
| Tyre Specification | 11.00-20 | |
| Tyre Number | 12 tyres and 1 spare tyre | |
| Max Speed | 79 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 35,000 Litres (About 9,200 gallons) |
| Tank Material | Carbon steel | |
| Pump | Equipped for overhead delivery, 1000 litres / min | |
| Suction Head | 6 m | |
| Hose | High quality, wire strengthened hose, with cooper wire, anti-static | |
| All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers…….. | ||
| Optional |
1.Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)…… 2. It can be divided into many compartments. 3. Devices can be equipped: fuel counter (flow gauge), fuel dispenser, hose reel, level gauge…… 4. Heat preservation & heating system could be added. 5. Bottom loading system can be equipped. |
|
| Products Technical Specification | ||
| Brand-Drive | Foton-Auman-8x2 | |
| Chassis Model | Bj1313Vpphj-1 | |
| Fuel Type | Diesel | |
| Cabin | Etx-2200,With A/C,Sleeper | |
| Fact Cubage (L) | 28000~30000 | |
| Whole Vehicle Main Dimensions (Mm) | Overall Dimensions (L×W×H) | 11810*2482*3380 |
| Tank Dimensions | 9000*2462*1510 | |
| Wheel Base | 1860+4700+1350 | |
| Front Overhang | 1365 | |
| Rear Overhang | 2535 | |
| Min. Ground Clearance | 470 | |
| Weight Data (Kg) | G.V.W | Approx 31000 |
| Curb Weight (Chassis) | Approx 12400 | |
| Max Payload | 20000 ~ 30000 | |
| Whole Vehicle Main Performance |
Max. Speed (Km/h) | 80 |
| Max. Slope Of Climb (%) | 30 | |
| Engine | Model | Yc6A260-33 |
| Maximum Power | 191kw / 260hp | |
| Number Of Cylinders | 6 | |
| Displacement (L) | 7.255 | |
| Engine Manufacturer | Guangxi Yuchai Machinery Co., Ltd. | |
| Gearbox | Number Of Gears | Fast, 8 Forward Gears & 1 Reverse |
| Axle | Front | Disc Brake |
| Rear Load Capacity | 457 | |
| Suspension | Front/Rear Leaf Spring | 10/10/6/10+9 |
| Steering Wheel | Left/Right Hand Drive | Lhd |
| Brake System | Service Brake | Air Braking |
| Parking Brake | Power Steering | |
| Electric Device | Rated Voltage | 24V |
| Tyres & Quantity | 10.00R20 & 10+1 | |
| Up-Parts Description | ||
| Tank Dimensions(Mm) | 9000*2462*1510 | |
| Standard Configuration | Shape | Oval Or Square |
| Material | Carbon Steel Q235 | |
| Thickness | 6 Mm | |
| 1-Chamber,Pump,Two Artesian Mouth, Two Pipelines,Toolbox | ||
| Optional Configuration (√ : Standard Equipment o: Optional ×: Not ) | ||
| A/C | √ | |
| Cabin,Half Row | √ | |
| Power Steering | √ | |
| Radial Tire | √ | |
| Abs | √ | |
| Color | o | |
| Refueling Equipment |
Fiscal Tanker, Refueling Guns, Pumps, Refueling Reel, Flow Meter. |
|
We Also Have Many Other Brands Of Oil Tank Truck/ Mobile Refueling Trucks
Eg:
Dongfeng Fuel Tank Truck Foton Forland Fuel Tank Truck Faw J5 J6 Fuel Tank Truck
Sinotruk Howo A7 Fuel Tank Truck Shacman F2000 F3000 M3000 X3000 Fuel Tank Truck
Beiben Fuel Tank Truck Iveco Hongyan Genlyon Fuel Tank Truck
Jac Fuel Tank Truck Jmc Fuel Tank Truck Yuejin Fuel Tank Truck Kama Fuel Tank Truck
T-King Fuel Tank Truck Fuel Tank Truck Hino Fuel Tank Truck Ud Fuel Tank Truck ,Etc.
Other Drive Type:
4x2 Oil Tank Truck 4x4 Oil Tank Truck 6x2 Fuel Tank Truck 6x4 Fuel Tank Truck
6x6 Oil Tank Truck 8x4 Oil Tank Truck 8x8 Fuel Tank Truck Rhd Fuel Tank Truck
Load Capacity:
1000L ~ 3000L ~ 5000L ~ 8000L ~ 10000L ~ 12000L ~ 15000L
18000L ~ 20000L ~ 25000L ~ 30000L ~ 35000L ~ 40000L
2axles / 3axles / 4axles Fuel Tank Semi Trailer:
30000L ~ 40000L ~ 45000L ~ 50000L ~ 55000L
Tank Material:
Carbon Steel Q235 Stainless Steel Fuel Tank Ss304 Ss316L Aluminum Fuel Tank
Oil Tank Truck is also called: Fuel Tank truck, fuel tanker truck, oil Tank truck, oil Tank trucks,
fuel transport truck…. It’s widely used in daily life. It can carry Diesel, Gasoline, coal tar, Lubricating oil, edible cooking oil, crude oil; heavy fuel oil and so on. Therefore, oil tank truck has lots of multifunction and usage.
OUR SERVICES
(1) More than 500 workers, large and advanced production;
(2) 25 professional engineers, can offer the best and cheapest design;
(3) Build strict QC team to guarantee the quality;
(4) 1 year or 30,000km warranty which comes first.
(5) One set of spare parts of chassis provided which will help you save money on maintenance.
(6) Provide technical support and after serive for life.
(7) Professional sales team which will help you to choose suitable truck.
FAQ
Why choose us?
Experience
10 years experience of production,sales,research and development in the field of special trucks.
Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.
Good quality
Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.
Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.
Production supply capacity
Company scale
More than 3000 employees with 1000 acres factory, total asset 2 billion.
We manufacture the truck as soon as possible once your order confirmed.And for the stock, we can delivery it immediately.
